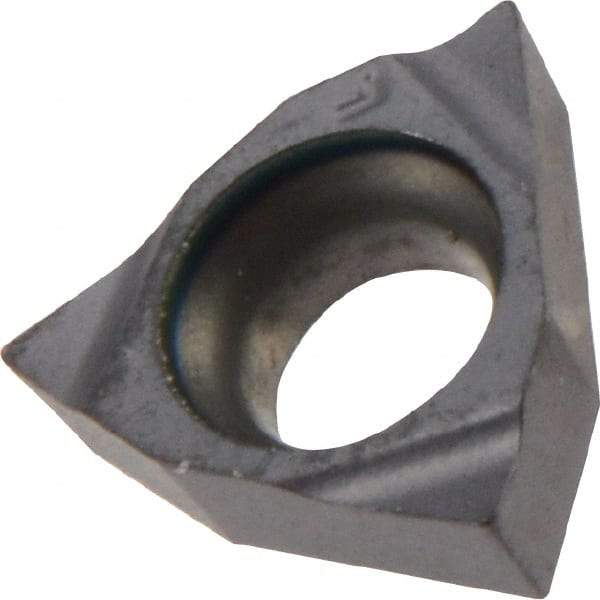

Iscar - WBMT52 Grade IC908 Carbide Turning Insert - TiAlN Finish, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.004" Corner Radius
Item #: 91122812
Brand: Iscar
Model #: 5506174
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 52 |
| Material | Carbide |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0860 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Rake | Positive |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WBMT520L |
| Primary Workpiece Material | P; M; K |
| Secondary Workpiece Material | H; S |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Shape | Trigon |
