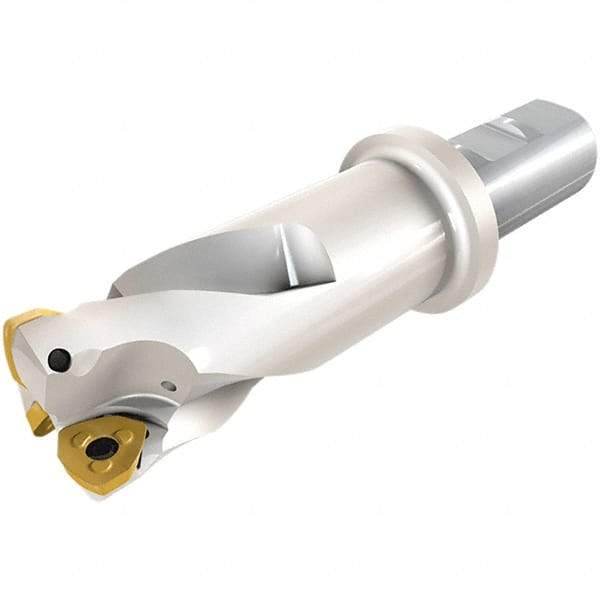

Iscar - 40mm Cut Diam, 0.079" Max Depth, 32mm Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, FF WOMT/WOCT, FF WOMW Insert, FF EW Toolholder, Through Coolant
Item #: 91134064
Brand: Iscar
Model #: 3103418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | FF WOMT/WOCT; FF WOMW |
| Toolholder Style | FF EW |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7560 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.5750 |
| Overall Length (mm) | 217.50 |
| Overall Length (Decimal Inch) | 8.5630 |
