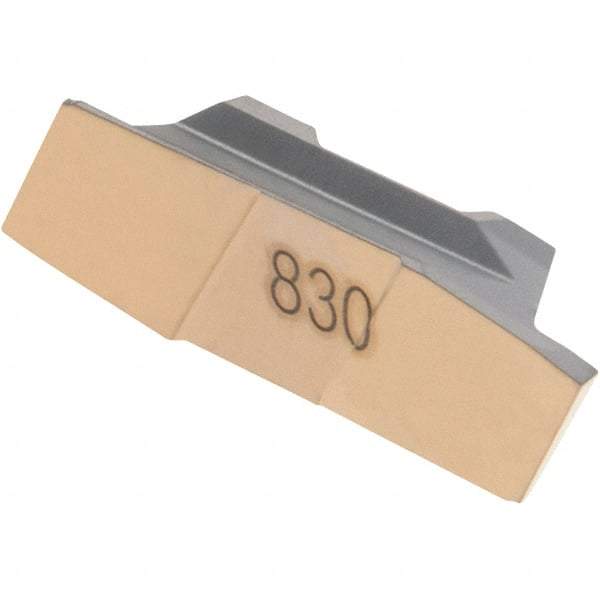

Iscar - 080000GIP X Grade IC830, 0.8mm Cutting Width Carbide Grooving Insert - 1.6mm Max Depth of Cut, Left Hand, TiAlN Finish
Item #: 91136994
Brand: Iscar
Model #: 6405053
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 080000 |
| Material | Carbide |
| Cutting Width (mm) | 0.80 |
| Cutting Width (Decimal Inch) | 0.0315 |
| Maximum Depth of Cut (mm) | 1.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Chipbreaker | X |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Series | Cut Grip |
