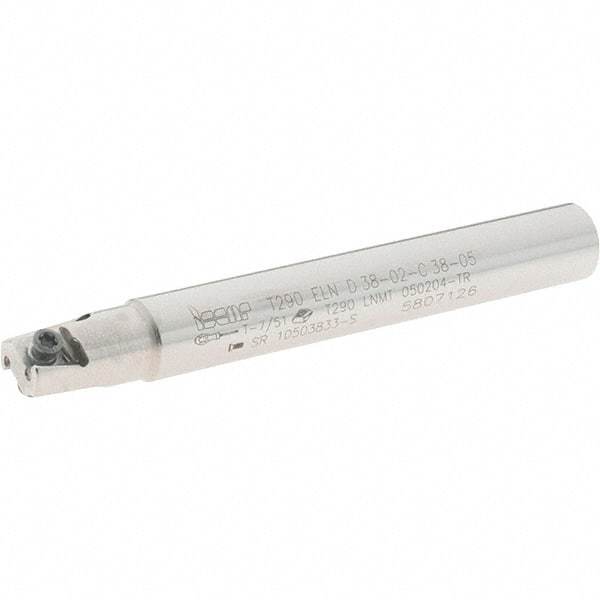

Iscar - 3/8" Cut Diam, 0.197" Max Depth of Cut, 3/8" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - T290 LN.T 0502 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series SumoMill
Item #: 91149096
Brand: Iscar
Model #: 3105150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Inch) | 3/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Lead Angle | 90 |
| Series | SumoMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T290 ELN-05 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 0.7900 |
| Weldon Flat | No |
| Insert Compatibility | T290 LN.T 0502 |
| Shank Length (Decimal Inch) | 2.2100 |
