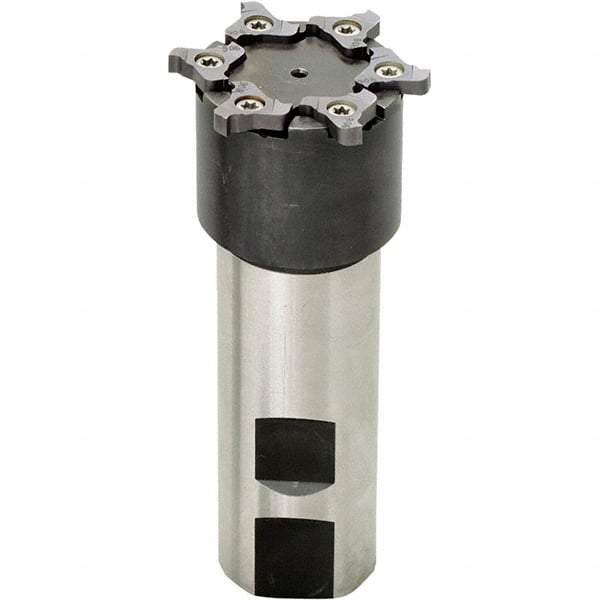

Iscar - Shank Connection, 1.968" Cutter Diam, 6 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, TRIB Toolholder, TRI Insert, Right Hand Cutting Direction
Item #: 91150888
Brand: Iscar
Model #: 2302263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Cutter Diameter (Decimal Inch) | 1.9680 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | TRIB |
| Series | ChamSlit(TRIB) |
| Insert Style | TRI |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1580 |
| Maximum Cutting Width (Decimal Inch) | 0.2560 |
| Shank Length (Decimal Inch) | 3.2300 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | TRIB 50-1.250W 6Z-B |
