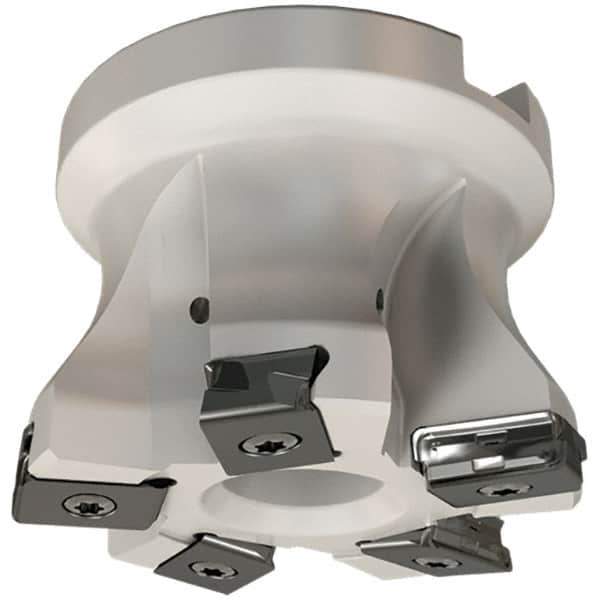

Iscar - 4 Inserts, 52mm Cut Diam, 22mm Arbor Diam, 3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, HTP LNHT 1006 Insert Compatibility, Through Coolant, Series TangPlunge
Item #: 91165258
Brand: Iscar
Model #: 3195495
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | HTP LNHT 1006 |
| Series | TangPlunge |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HTP-R-LN16 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 48.00 |
| Keyway Width (mm) | 10.40 |
| Maximum Body Diameter (Decimal Inch) | 1.8900 |
| Cutting Edge Length (Decimal Inch) | 0.1180 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | HTP LNHT 1006 |
