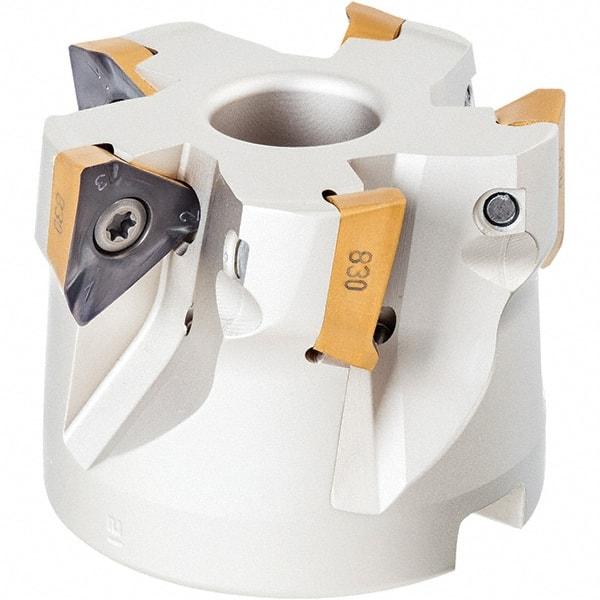

Iscar - 4 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.512" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, HM390 TDKT 1505 Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 91165449
Brand: Iscar
Model #: 3106561
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HM390 TDKT 1505 |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTD-15 |
| Number of Flutes | 4 |
| Complete Insert Compatibility | HM390 TDKT 1505 |
