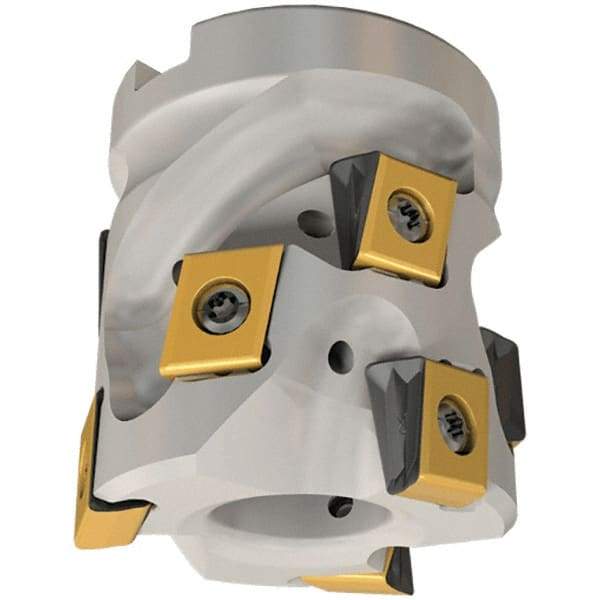

Iscar - 30 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 2.32" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 3.22" High, T490 LN.. 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91165639
Brand: Iscar
Model #: 3106377
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 3.2200 |
| Insert Compatibility | T490 LN.. 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.3200 |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13 |
| Number of Flutes | 6 |
| Cutting Edge Length (Decimal Inch) | 2.3200 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
