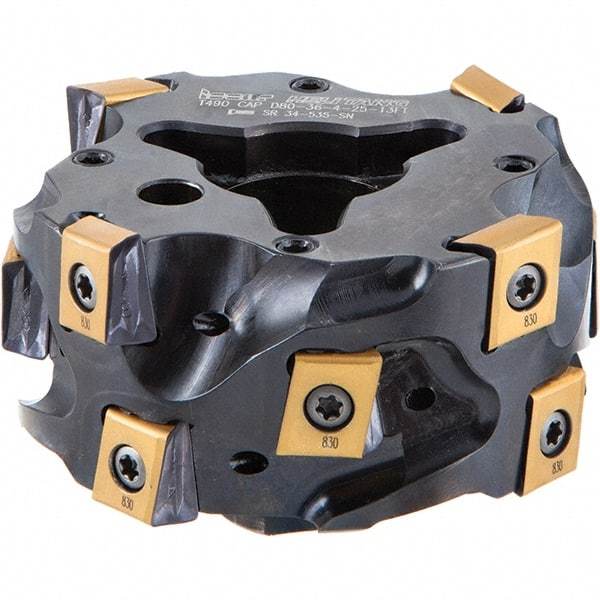

Iscar - 9 Inserts, 63mm Cut Diam, 36mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, T490 LN.. 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91165902
Brand: Iscar
Model #: 3105965
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 0/90 |
| Insert Compatibility | T490 LN.. 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 36.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4173 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | T490 CAP-FT |
| Number of Flutes | 9 |
| Cutting Edge Length (Decimal Inch) | 1.4170 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
