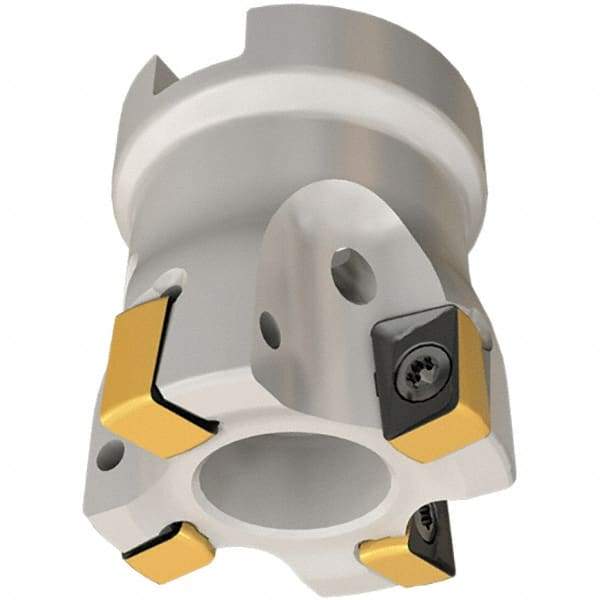

Iscar - 6 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, H490 AN.X 09 Insert Compatibility, Through Coolant, Series Helido
Item #: 91166025
Brand: Iscar
Model #: 3105862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | H490 AN.X 09 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | H490 F90AX-09 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 10.40 |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | H490 ANKX 0904-FF; H490 ANKX/ANCX-09 |
