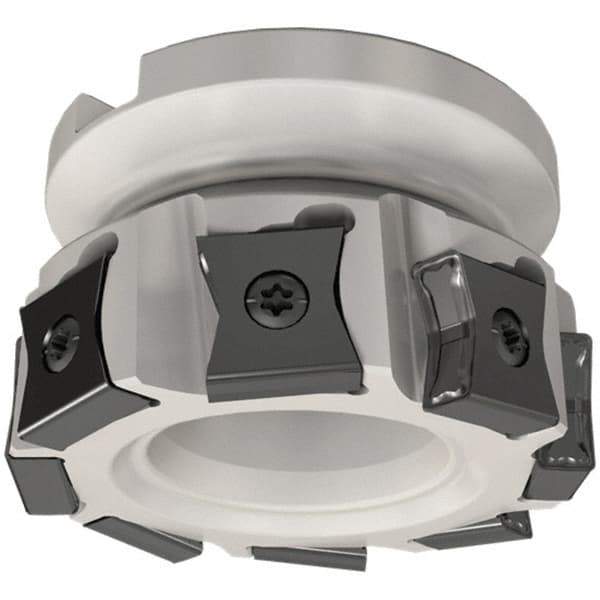

Iscar - 7 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 14mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, LN.. 15.. Insert Compatibility, Series TangMill
Item #: 91167510
Brand: Iscar
Model #: 3102280
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | LN.. 15.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 14.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N15 |
| Number of Flutes | 7 |
| Keyway Width (mm) | 12.40 |
| Cutting Edge Length (Decimal Inch) | 0.5510 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 1.4170 |
| Complete Insert Compatibility | LNAR 1506; LNAR 1506 PN-R-S (PCD); LNAT 1506-W; LNAT 1506..PN-N MM; LNAW-15 (CBN); LNHW 1506 PNTN (Ceramic); LNKX 1506 1.5X45 PN-N; LNKX 1506PN-N PL; LNKX/LNMT 1506PNTN/PN-N MM; LNMT 1506PN-R-TS; LNMT/LNHT 1506...-N HT; LNMT/LNHT 1506PN-R HT; LNMW 1506 PN |
