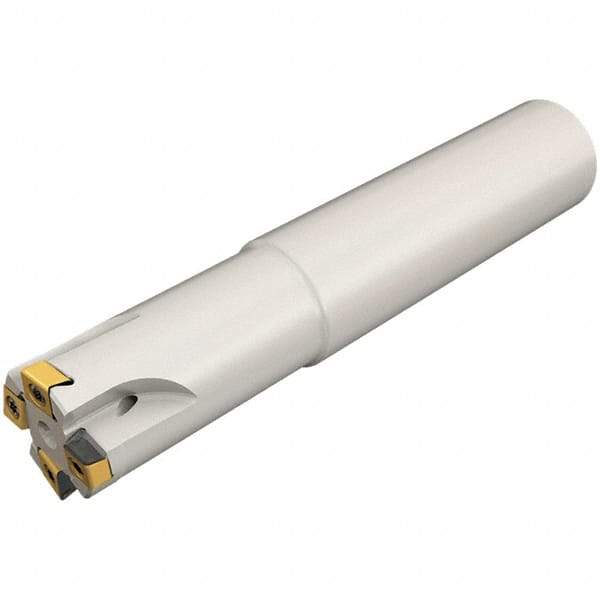

Iscar - 25mm Cut Diam, 2.5mm Max Depth of Cut, 25mm Shank Diam,Indexable Plunge End Mill - Straight Shank, HTP LNHT 0604 Insert Style, HTP-LN06 Toolholder Style, Through Coolant, Series FlexFit, TangPlunge
Item #: 91168518
Brand: Iscar
Model #: 3106071
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.0 |
| Maximum Depth of Cut (mm) | 2.50 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Number of Cutter Inserts | 4 |
| Insert Style | HTP LNHT 0604 |
| Toolholder Style | HTP-LN06 |
| Series | FlexFit, TangPlunge |
| Number of Flutes | 4 |
| Overall Length Projection (mm) | 130.0 |
| Head Length (mm) | 50.00 |
| Insert Holding Method | Clamp, Screw |
| Shank Length (mm) | 80.00 |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| End Mill Type | End Mill |
