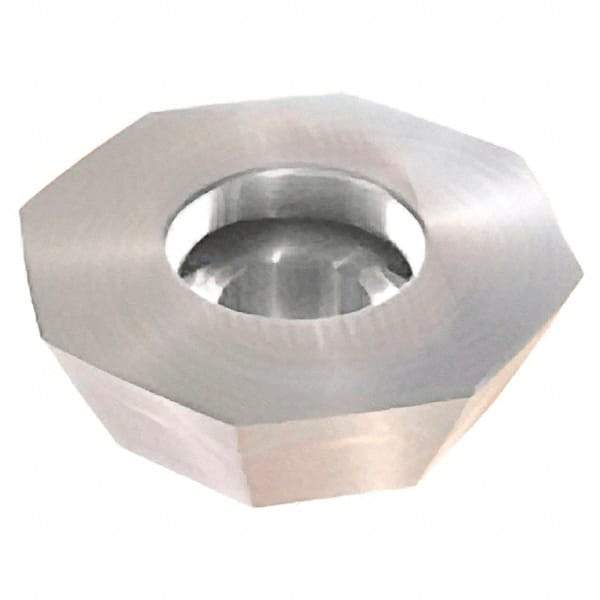

Iscar - OEMW060405 Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1866" Thick, 9/16" Inscribed Circle, 0.5mm Corner Radius
Item #: 91170183
Brand: Iscar
Model #: 5604507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OEMW |
| Insert Size | 060405 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.5620 |
| Thickness (Decimal Inch) | 0.1866 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 20.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 2.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.0965 |
| ISO Number | OEMW 060405-AETN |
