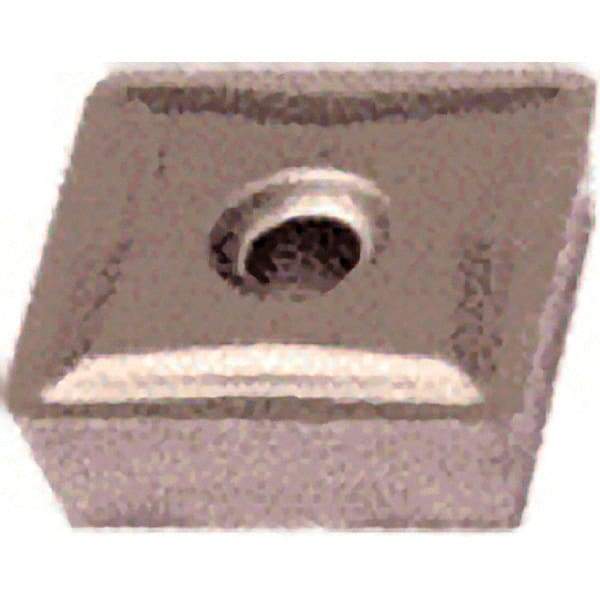

Iscar - SPMR322 Grade IC9350 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 91170464
Brand: Iscar
Model #: 5507616
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMR |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC9350 |
| Coating | TiCN/Al2O3/TiN |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Clamp |
| Shape | Square |
