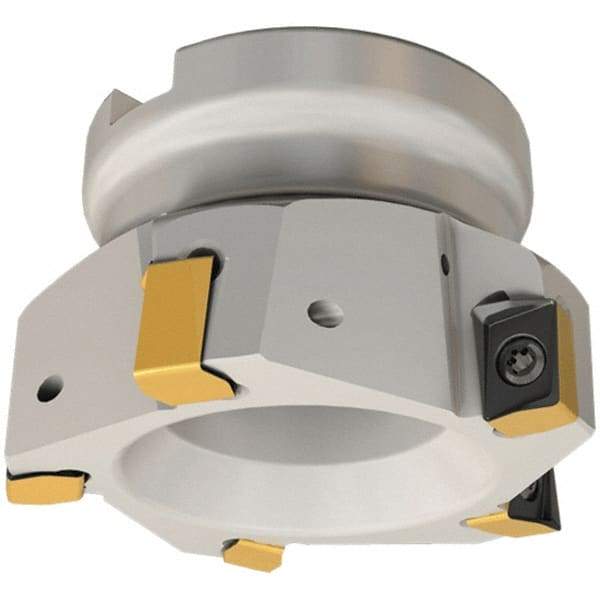

Iscar - 6 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, H490 AN.X 12 Insert Compatibility, Through Coolant, Series Helido
Item #: 91173351
Brand: Iscar
Model #: 3105154
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | H490 AN.X 12 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | H490 F90AX-12 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 14.40 |
| Cutting Edge Length (Decimal Inch) | 0.4720 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | H490 ANKX/ANCX 1205-FF; H490 ANKX/ANCX-12 |
