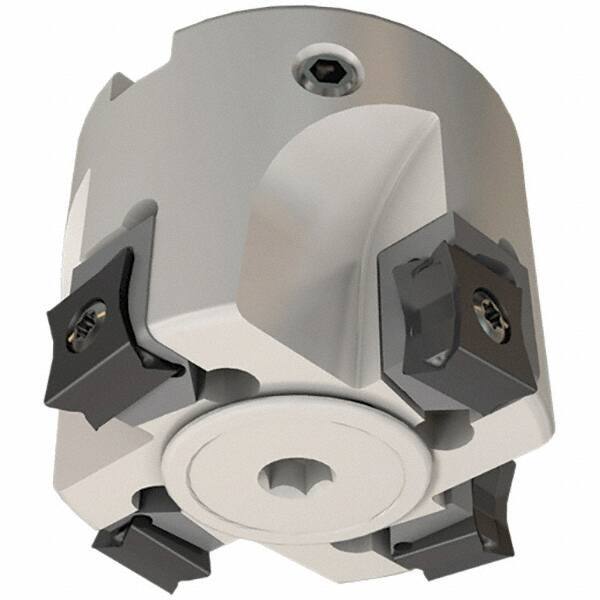

Iscar - 10 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 55mm High, LN.. 11.. Insert Compatibility, Through Coolant, Series Heli2000
Item #: 91173385
Brand: Iscar
Model #: 3105796
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 55.00 |
| Insert Compatibility | LN.. 11.. |
| Series | Heli2000 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-FR CA11 |
| Number of Flutes | 10 |
| Keyway Width (mm) | 14.40 |
| Maximum RPM | 15500 |
| Cutting Edge Length (Decimal Inch) | 0.1970 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | LNAR 1106; LNAR 1106 (PCD); LNAR 1106PN-R-S-W (PCD); LNAT 1106-W; LNAW-11 (CBN); LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX/LNMT 1106 |
| Toolholder Material | Aluminum |
