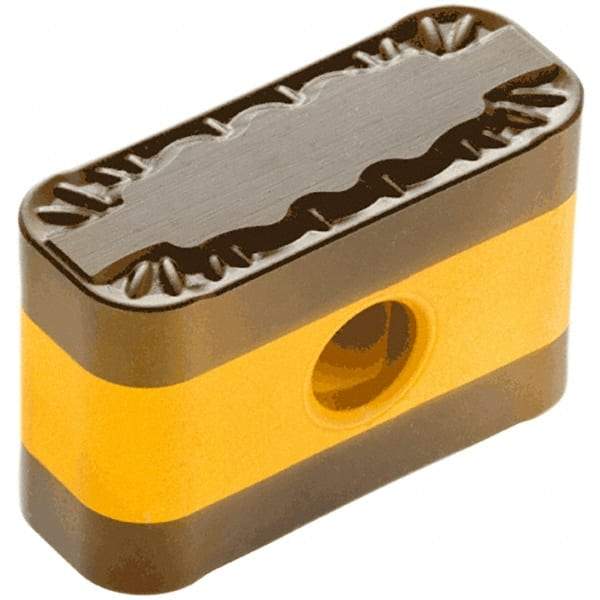

Iscar - LNMX191940 WM Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 3/4" Thick, 4mm Corner Radius
Item #: 91174235
Brand: Iscar
Model #: 5595230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 191940 |
| Material | Carbide |
| Length (mm) | 19.05 |
| Thickness (Inch) | 3/4 |
| Thickness (mm) | 19.05 |
| Corner Radius (mm) | 4.00 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | WM |
| Hole Diameter (mm) | 6.35 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Holding Method | Clamp |
| Shape | Rectangle |
