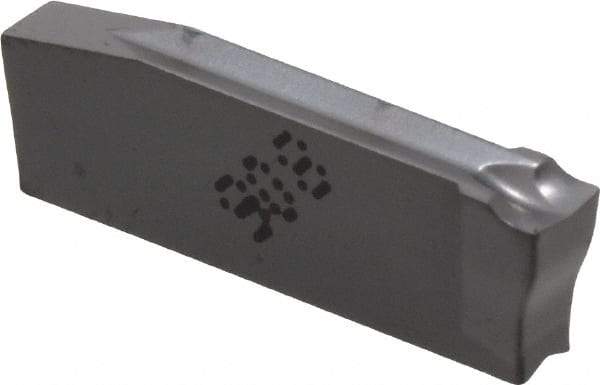

Iscar - DGN J IC908 Grade, 0.1252" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad, TiAlN Coated, Double End
Item #: 91225805
Brand: Iscar
Model #: 6003291
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Overall Length (mm) | 20.30 |
| Overall Length (Decimal Inch) | 0.7992 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | DGNM 3202J |
