Turning Insert: WBGT520.5L-JS SH730, Solid Carbide TiAlN Finish, Left Hand, 0.0080″ Corner Radius, 80.0 ° N/A Trigon, Series WBGT
Item #: 91308122
Brand: Tungaloy
Model #: 6837564

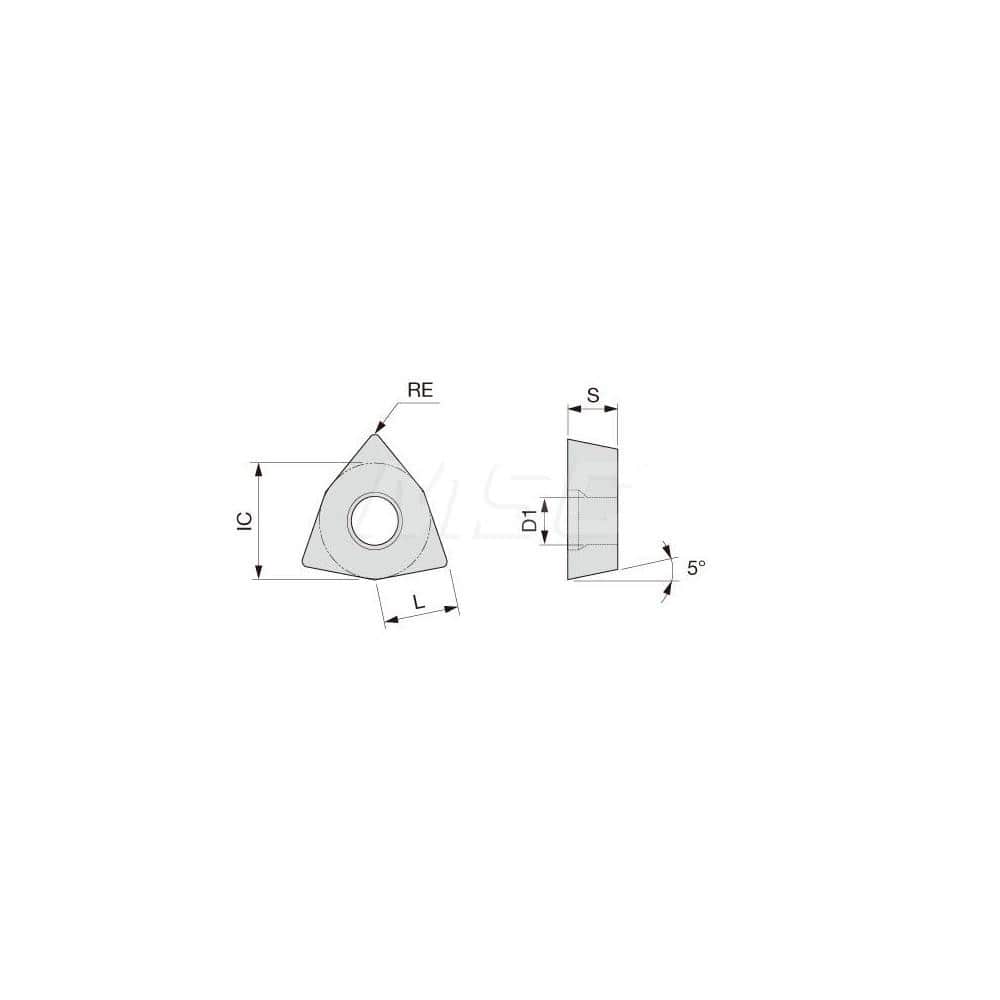

Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 520.5 |
| Insert Shape | Trigon |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH730 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Relief Angle | 5 |
| Series | WBGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | WBGT520.5LJSSH730 |
| Iso Code | WBGT030102L-JS SH730 |
| Chip Breaker | JS |
| Coating/Finish | TiAlN |
