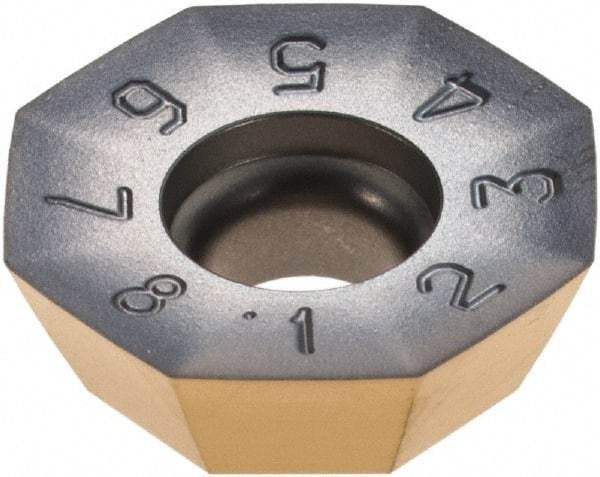

Iscar - OECR060405 AER Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.1929" Thick, 0.5689" Inscribed Circle, 0.5mm Corner Radius
Item #: 91492884
Brand: Iscar
Model #: 5668057
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OECR |
| Insert Size | 060405 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5689 |
| Thickness (Decimal Inch) | 0.1929 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Shape | Octagon |
| Chipbreaker | AER |
| Maximum Depth of Cut (mm) | 3.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Manufacturers Catalog Number | OECR 060405AER |
