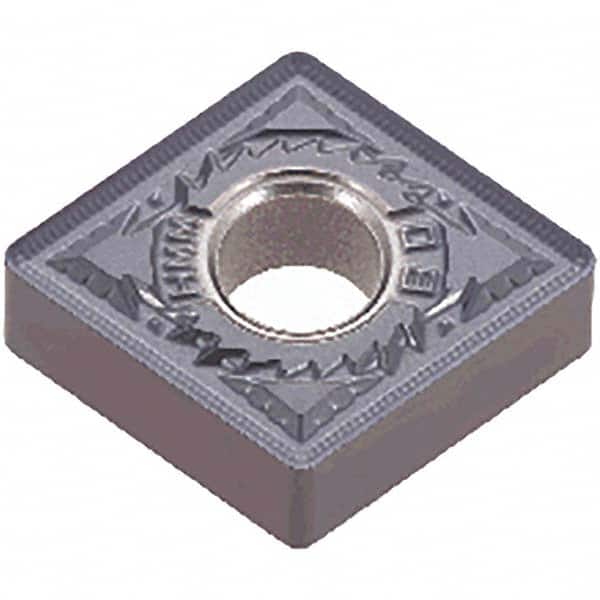

Turning Insert
Item #: 91693515
Brand: Tungaloy
Model #: 6859436
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH905 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Included Angle | 80.0 |
| Series | CNMG |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Iso Code | CNMG432HMM |
| Standards | ISO |
| Chip Breaker | HMM |
| Coating/Finish | Coated |
