Turning Insert: EPGT521L-W08 TH10, Solid Carbide Uncoated Finish, Left Hand, 0.0160″ Corner Radius, 75.0 ° N/A Diamond, Series EPGT
Item #: 92565456
Brand: Tungaloy
Model #: 6804321
Product Specifications

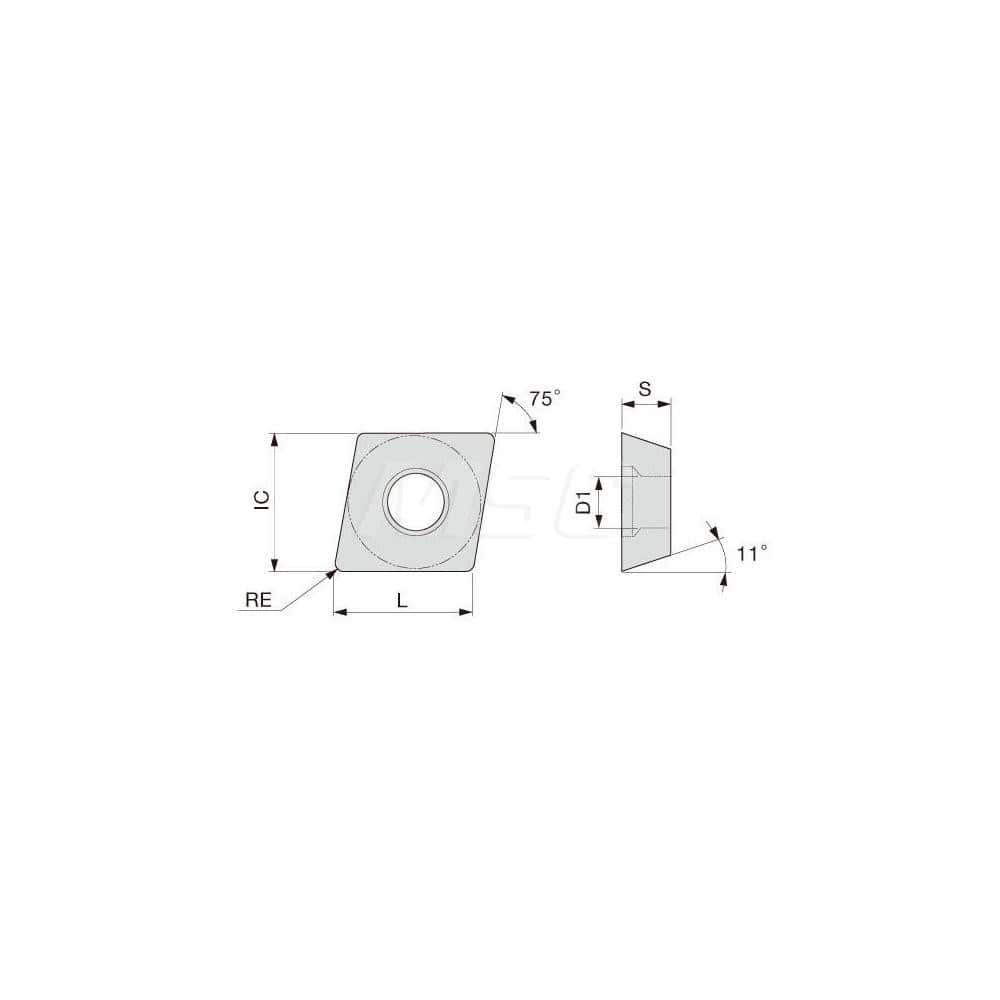

| Insert Style | EPGT |
| Insert Size Code | 521 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | EPGT521LW08TH10 |
| Iso Code | EPGT521L-W08 TH10 |
| Chip Breaker | W08 |
| Coating/Finish | Uncoated |
