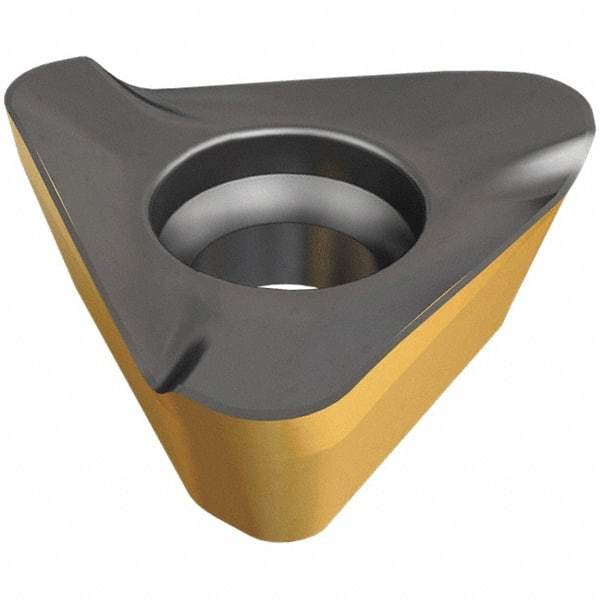

Iscar - HM390 TDCT1505 PDR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 6.08mm Thick, 11.4mm Inscribed Circle, 0.8mm Corner Radius
Item #: 92705573
Brand: Iscar
Model #: 5607509
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDCT |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 16.80 |
| Length (Decimal Inch) | 0.6610 |
| Inscribed Circle (mm) | 11.40 |
| Inscribed Circle (Decimal Inch) | 0.4490 |
| Thickness (mm) | 6.08 |
| Thickness (Decimal Inch) | 0.2390 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TDCT 1505PDR |
| ISO Number | HM390 TDCT 1505PDR |
| ANSI Number | HM390 TDCT 1505PDR |
