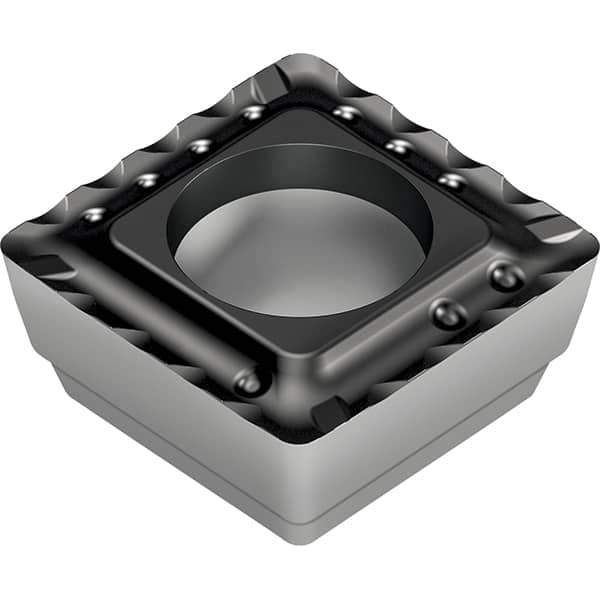

Walter - P4846 E67 Grade WKP35S Carbide Indexable Drill Insert - 4.88mm Thick, TiCN/Al2O3/TiN Finish, Square, 11.76mm Inscribed Circle, 0.71mm Corner Radius
Item #: 92959345
Brand: Walter
Model #: 6171337
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 441 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC520N |
| Coating | TiCN/TiN |
| Chip Breaker | FFC |
| ISO Number | DNMG 441-FFC |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6171337 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.71 |
| Corner Radius (Decimal Inch) | 0.0280 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | E67 |
| Inscribed Circle (mm) | 11.76 |
| Inscribed Circle (Decimal Inch) | 0.4630 |
| Material Grade | P35/K35 |
| Material | Carbide |
| Manufacturer's Grade | WKP35S |
| Insert Style | P484 |
| Insert Size | 6 |
| Thickness (mm) | 4.88 |
| Thickness (Decimal Inch) | 0.1920 |
| Shape | Square |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi Use Application | Turning |
| Shape | Diamond |
