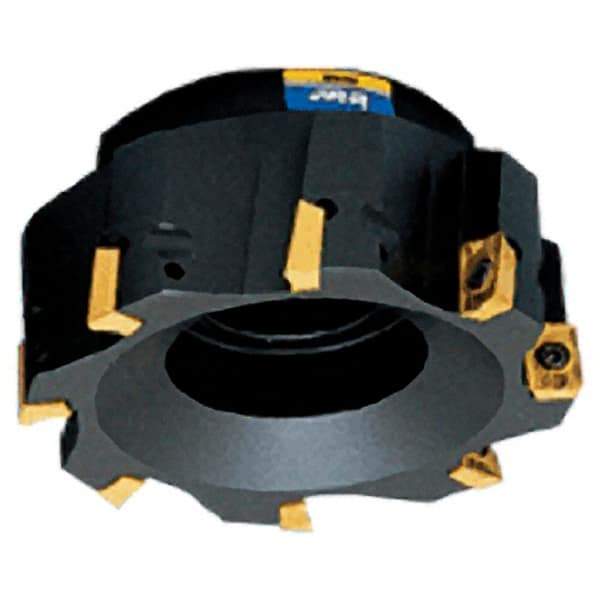

Iscar - 4 Inserts, 1-1/2" Cut Diam, 3/4" Arbor Diam, 0.56" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.57" High, AD.. 150 Insert Compatibility, Series Heli2000
Item #: 93341758
Brand: Iscar
Model #: 3102117
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | AD.. 150 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90A-15 |
| Number of Flutes | 4 |
| Complete Insert Compatibility | ADCA 150308; ADCA 150320; ADCA 150330; ADCA 150340; ADCA 150350; ADCR 1505PDFR; ADCR 1505PDFR-P; ADCT 1505PDFR-HM; ADKR 150504PDR-HM; ADKR 1505PDR-HM; ADKT 150516R-HM; ADKT 150520R-HM; ADKT 150524R-HM; ADKT 150532R-HM; ADKT 150540R-HM |
