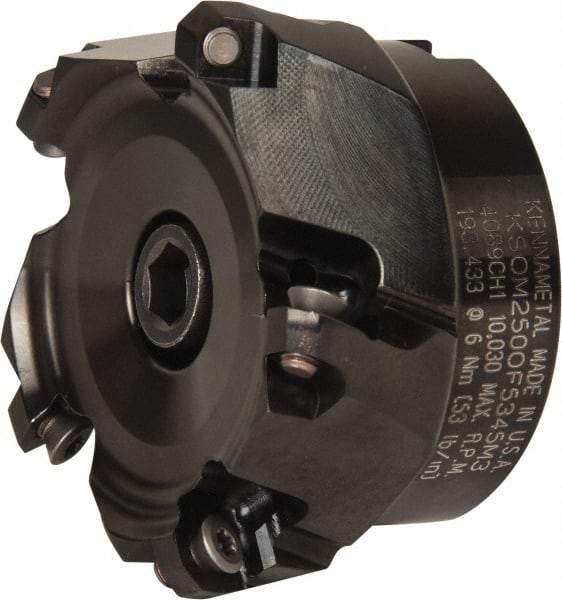

Kennametal - 2-1/2" Cut Diam, 3/4" Arbor Hole, 3.5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 5 Inserts, OF.T 06L5... Insert, Right Hand Cut, 5 Flutes, Series KSOM Mini
Item #: 93428514
Brand: Kennametal
Model #: 3093635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.5700 |
| Overall Height (mm) | 39.88 |
| Insert Compatibility | OF.T 06L5... |
| Series | KSOM Mini |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 1.9860 |
| Hub Diameter (mm) | 50.45 |
| Keyway Width (Decimal Inch) | 0.3130 |
| Maximum Body Diameter (Decimal Inch) | 2.8460 |
| Maximum RPM | 10030 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
