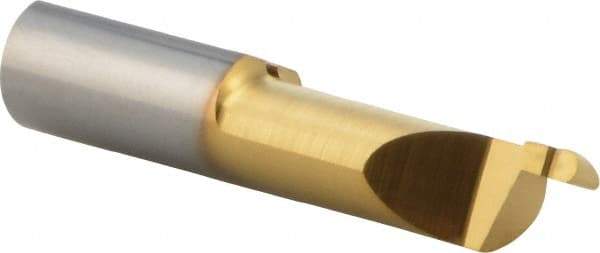

Iscar - 8mm Min Bore Diam, 3mm Max Bore Depth, 7mm Shank Diam, Corner Radius Boring Bar - 0.0315" Corner Radius, Right Hand Cut, Solid Carbide, TiAlN/TiN Finish
Item #: 93453173
Brand: Iscar
Model #: 6403932
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Corner radius bars are used for removing materials at the cutting edge of the workpiece.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter (mm) | 8.00 |
| Maximum Bore Depth (Decimal Inch) | 0.1181 |
| Maximum Bore Depth (mm) | 3.00 |
| Material | Solid Carbide |
| Boring Bar Type | Corner Radius |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.0000 |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer Grade | IC1008 |
