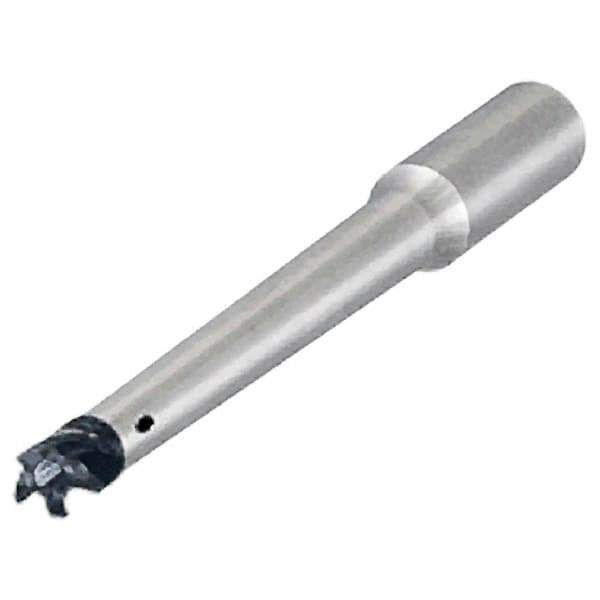

Iscar - Multimaster 16mm 89° Shank Milling Tip Insert Holder & Shank - T06 Neck Thread, 150mm OAL, Tungsten MM S-D Tool Holder
Item #: 93957868
Brand: Iscar
Model #: 3181093
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Neck Thread Size | T06 |
| Toolholder Material | Tungsten |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.6930 |
| Effective Length (mm) | 100.00 |
| Effective Length (Decimal Inch) | 3.9370 |
| Milling Tip Style | ER-SEAL, ER-SEAL-JET2, ER-SPR, ER-SPR-AA, MM EB, MM EC-4, MM GRIT-16K/18P, MM GRIT-K/P-45A, MM HCR, T290 ELN-MM-05 |
| Shank Shape | Straight |
| Toolholder Style | MM S-D |
