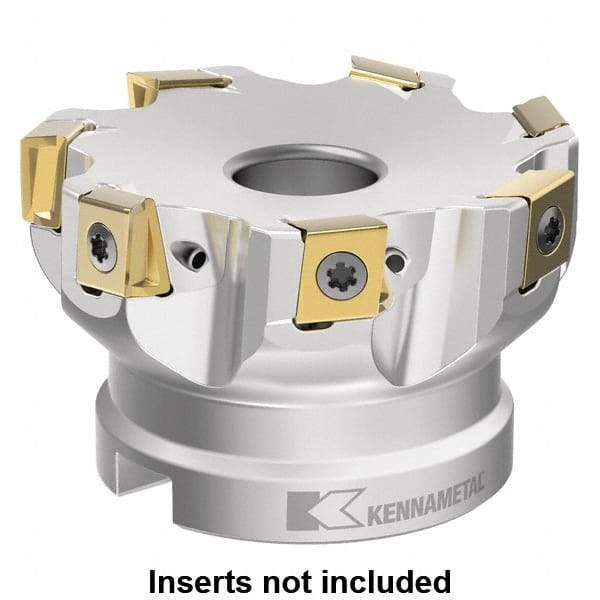

Kennametal - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 80.00 Cutting Diameter (Decimal Inch): 3.1496
Item #: 94275351
Brand: Kennametal
Model #: 6524757
Exact Tooling IR#: 04
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Decimal Inch): 3.1496 ; Arbor Hole Diameter (mm): 27.00 ; Lead Angle: 0 ; Overall Height (mm): 50.00 ; Insert Compatibility: LNGQ
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | LNGQ |
| Series | Mill 4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.15 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | KT4 |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 60.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0596 |
| Maximum RPM | 19000 |
| ISO Number | KT4D080Z07S27LN12 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Complete Insert Compatibility | LNGQ 120608.R..KT4 |
| Toolholder Material | Steel |
