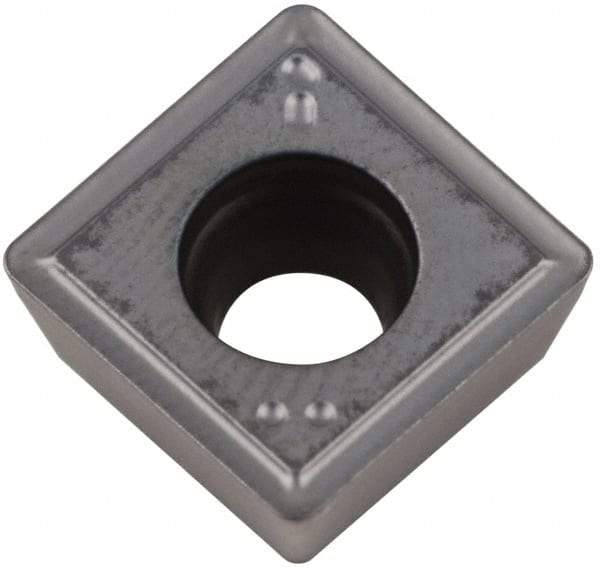

Iscar - SOMT09T306 GF Grade IC328 Carbide Indexable Drill Insert - TiCN Finish, Square, 9mm Inscribed Circle
Item #: 94508256
Brand: Iscar
Model #: 5598816
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 09T306 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Inscribed Circle (mm) | 9.00 |
| Inscribed Circle (Decimal Inch) | 0.3543 |
| Thickness (mm) | 3.81 |
| Thickness (Decimal Inch) | 0.1500 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Square |
| Hole Diameter (Decimal Inch) | 0.1330 |
| Included Angle | 90 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | GF |
