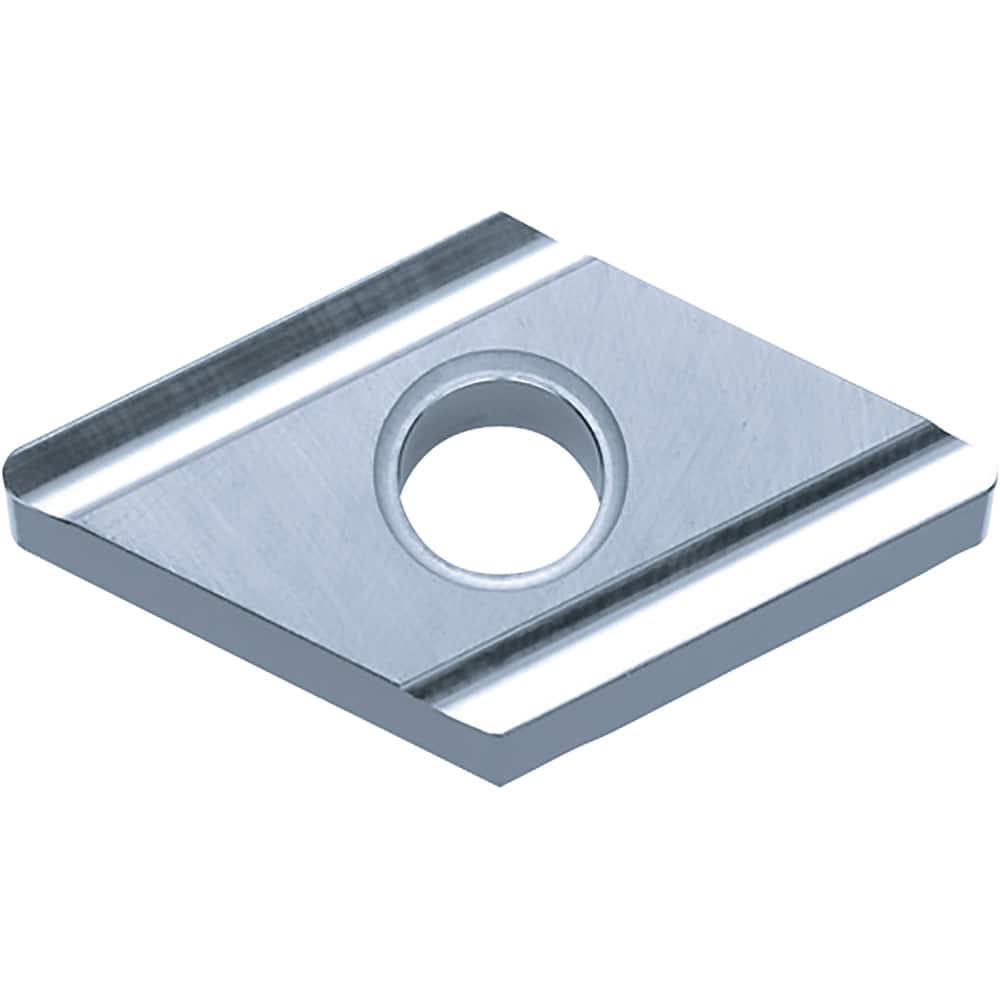

DNGG150404L TN610 Cermet Turning Insert Uncoated, LH, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 55° Diamond, Series HYBCERM
Item #: 96083399
Brand: Kyocera
Model #: TSS03700
Product Specifications
| Insert Style | DNGG |
| Insert Shape Code | D |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Manufacturer Grade | TN610 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | HYBCERM |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | DNGG431LTN610 |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Copying; Boring |
