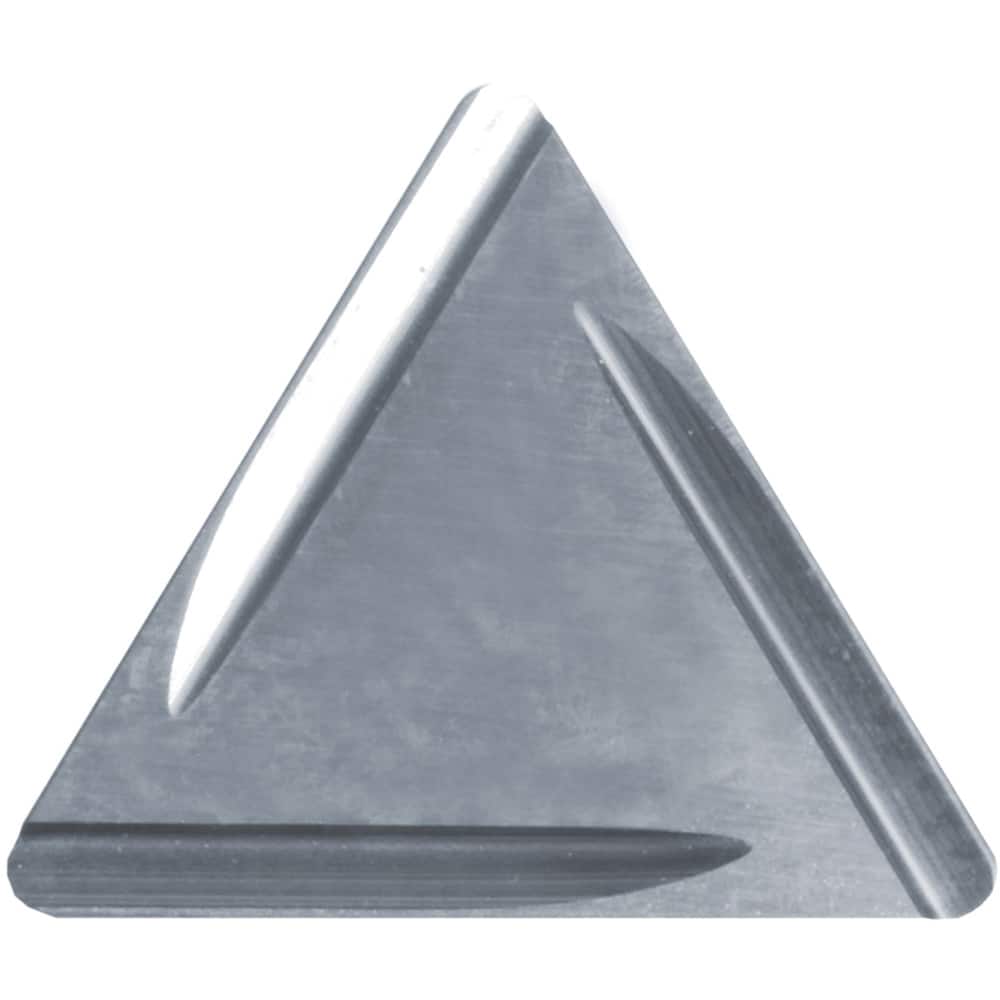

TPGR160304R-B TN610 Cermet Turning Insert Uncoated, RH, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1252″ Thick, 60° Triangle, Series HYBCERM
Item #: 96322433
Brand: Kyocera
Model #: TSS06963
Product Specifications
| Insert Style | TPGR |
| Insert Shape Code | T |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Manufacturer Grade | TN610 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | HYBCERM |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | TPGR321RBTN610 |
| Chip Breaker | R |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
