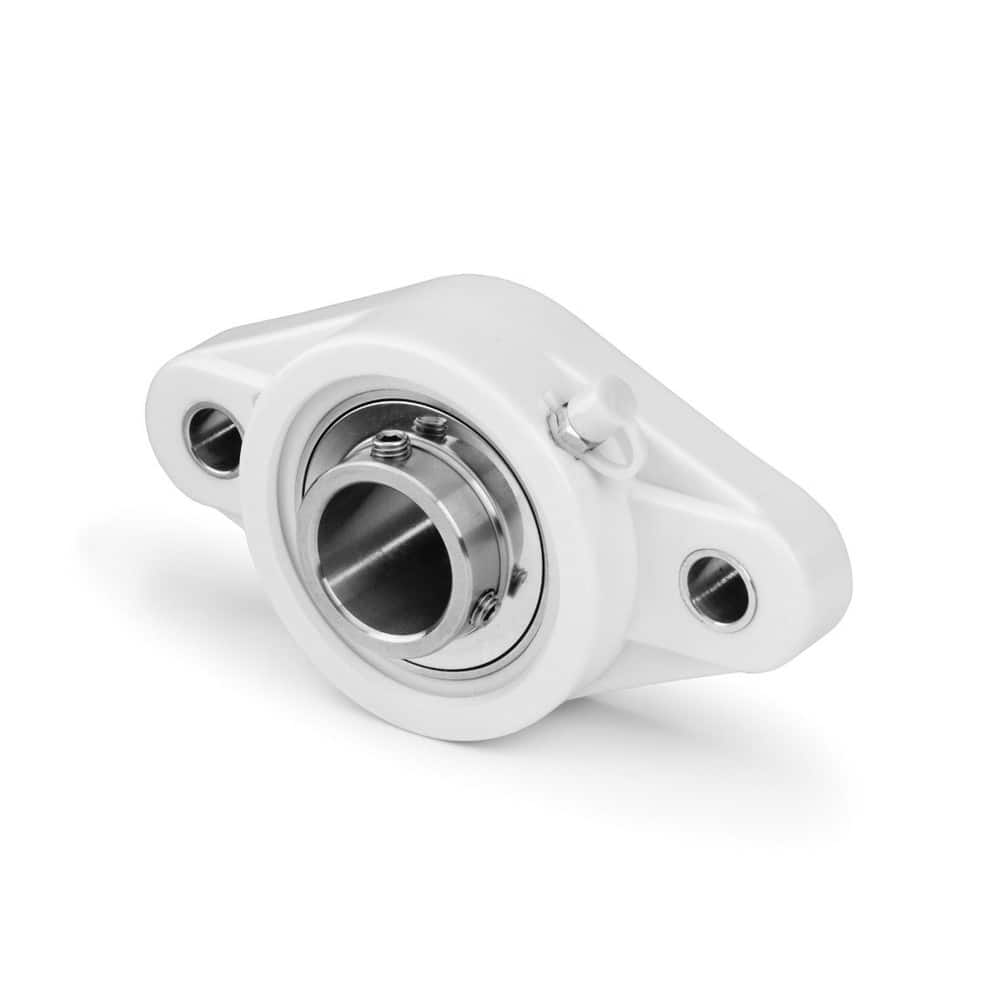

Mounted Bearings & Pillow Blocks; Bearing Insert Type: Wide Inner Ring; Bolt Hole (Center-to-center): 99 mm; Housing Material: Thermoplastic; Lock Type: Set Screw; Static Load Capacity: 1440.00; Number Of Bolts: 2; Maximum RPM: 5849.000; Series: UCFLPL; I
Item #: 97173009
Brand: Tritan
Model #: UCFLPL205-25MMSS
Product Specifications
| Bearing Insert Type | Wide Inner Ring |
| Bearing Bore Diameter | 25 mm |
| Bolt Hole (Center-to-center) | 99 mm |
| Width (Inch) | 70 |
| Width (Decimal Inch) | 70 |
| Width (mm) | 70 |
| Bolt Size | 0.3750 |
| Housing Material | Thermoplastic |
| Overall Length (Inch) | 131.00 |
| Overall Length (Decimal Inch) | 131.00 |
| Overall Length (mm) | 131.00 |
| Overall Length | 131.00 |
| Overall Width | 70 |
| Overall Height (Decimal Inch) | 36.7 mm |
| Overall Height (mm) | 36.7 mm |
| Overall Height (Inch) | 36.7 mm |
| Overall Height | 36.7 mm |
| Number Of Bolts | 2 |
| Static Load Capacity | 1440.00 |
| Dynamic Load Capacity | 2700.000 |
| Maximum Rpm | 5849.000 |
| Series | UCFLPL |
| Material | Thermoplastic |
| Insert Material | Stainless Steel |
| Lock Type | Set Screw |
