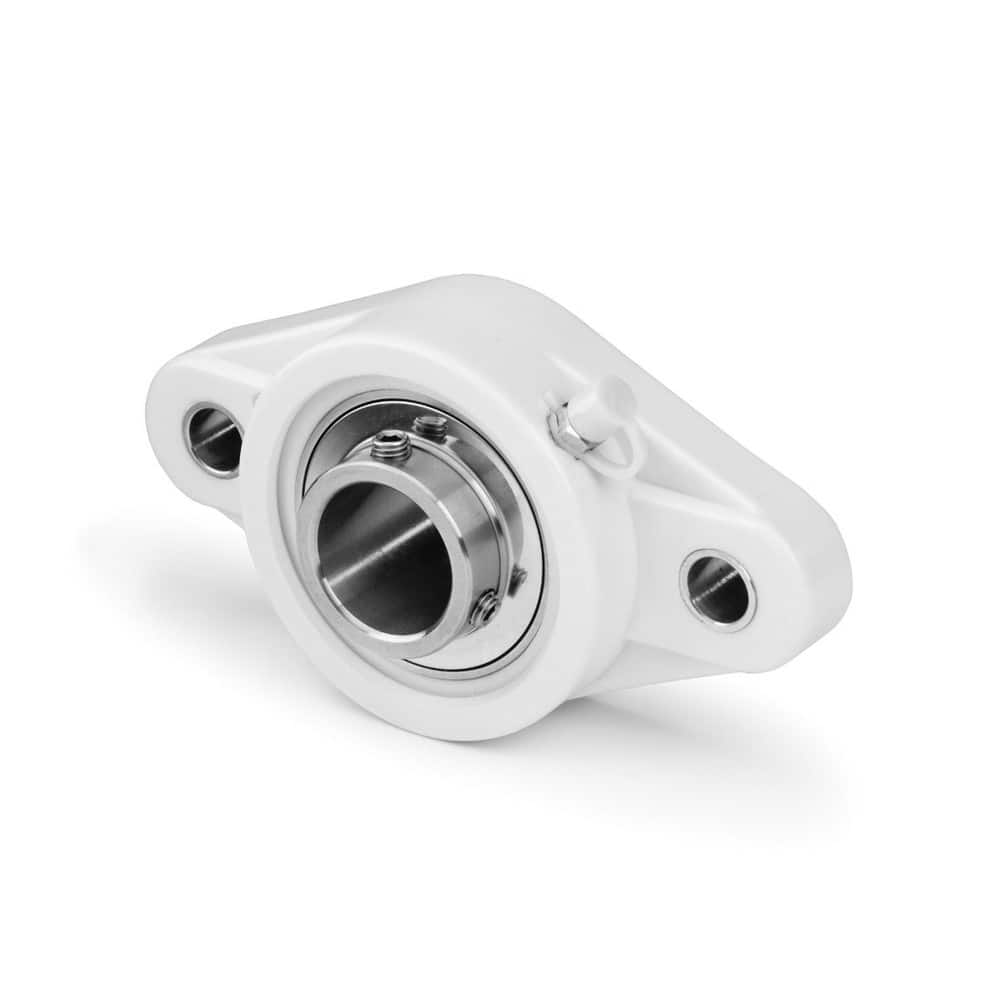

Mounted Bearings & Pillow Blocks; Bearing Insert Type: Wide Inner Ring; Bolt Hole (Center-to-center): 90 mm; Housing Material: Thermoplastic; Lock Type: Set Screw; Static Load Capacity: 1225.00; Number Of Bolts: 2; Maximum RPM: 6490.000; Series: UCFLPL; I
Item #: 97173017
Brand: Tritan
Model #: UCFLPL204-20MMSS
Product Specifications
| Bearing Insert Type | Wide Inner Ring |
| Bearing Bore Diameter | 20 mm |
| Bolt Hole (Center-to-center) | 90 mm |
| Width (Inch) | 64 |
| Width (Decimal Inch) | 64 |
| Width (mm) | 64 |
| Bolt Size | 0.3750 |
| Housing Material | Thermoplastic |
| Overall Length (Inch) | 113.00 |
| Overall Length (Decimal Inch) | 113.00 |
| Overall Length (mm) | 113.00 |
| Overall Length | 113.00 |
| Overall Width | 64 |
| Overall Height (Decimal Inch) | 33.7 mm |
| Overall Height (mm) | 33.7 mm |
| Overall Height (Inch) | 33.7 mm |
| Overall Height | 33.7 mm |
| Number Of Bolts | 2 |
| Static Load Capacity | 1225.00 |
| Dynamic Load Capacity | 2440.000 |
| Maximum Rpm | 6490.000 |
| Series | UCFLPL |
| Material | Thermoplastic |
| Insert Material | Stainless Steel |
| Lock Type | Set Screw |
