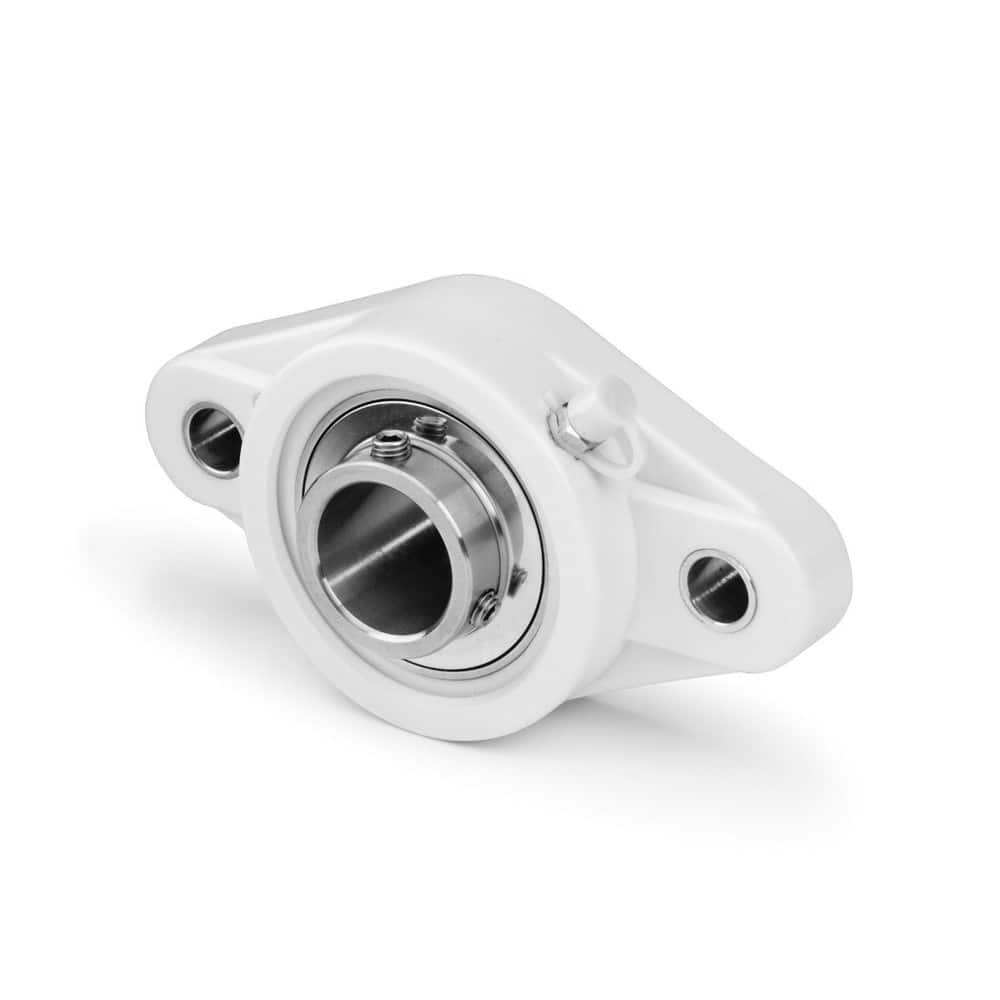

Mounted Bearings & Pillow Blocks; Bearing Insert Type: Wide Inner Ring; Bolt Hole (Center-to-center): 130 mm; Housing Material: Thermoplastic; Lock Type: Set Screw; Static Load Capacity: 2800.00; Number Of Bolts: 2; Maximum RPM: 4300.000; Series: UCFLPL;
Item #: 97173827
Brand: Tritan
Model #: UCFLPL207-35MMSS
Product Specifications
| Bearing Insert Type | Wide Inner Ring |
| Bearing Bore Diameter | 35 mm |
| Bolt Hole (Center-to-center) | 130 mm |
| Width (Inch) | 89 |
| Width (Decimal Inch) | 89 |
| Width (mm) | 89 |
| Bolt Size | 0.4375 |
| Housing Material | Thermoplastic |
| Overall Length (Inch) | 164.00 |
| Overall Length (Decimal Inch) | 164.00 |
| Overall Length (mm) | 164.00 |
| Overall Length | 164.00 |
| Overall Width | 89 |
| Overall Height (Decimal Inch) | 43.4 mm |
| Overall Height (mm) | 43.4 mm |
| Overall Height (Inch) | 43.4 mm |
| Overall Height | 43.4 mm |
| Number Of Bolts | 2 |
| Static Load Capacity | 2800.00 |
| Dynamic Load Capacity | 4900.000 |
| Maximum Rpm | 4300.000 |
| Series | UCFLPL |
| Material | Thermoplastic |
| Insert Material | Stainless Steel |
| Lock Type | Set Screw |
