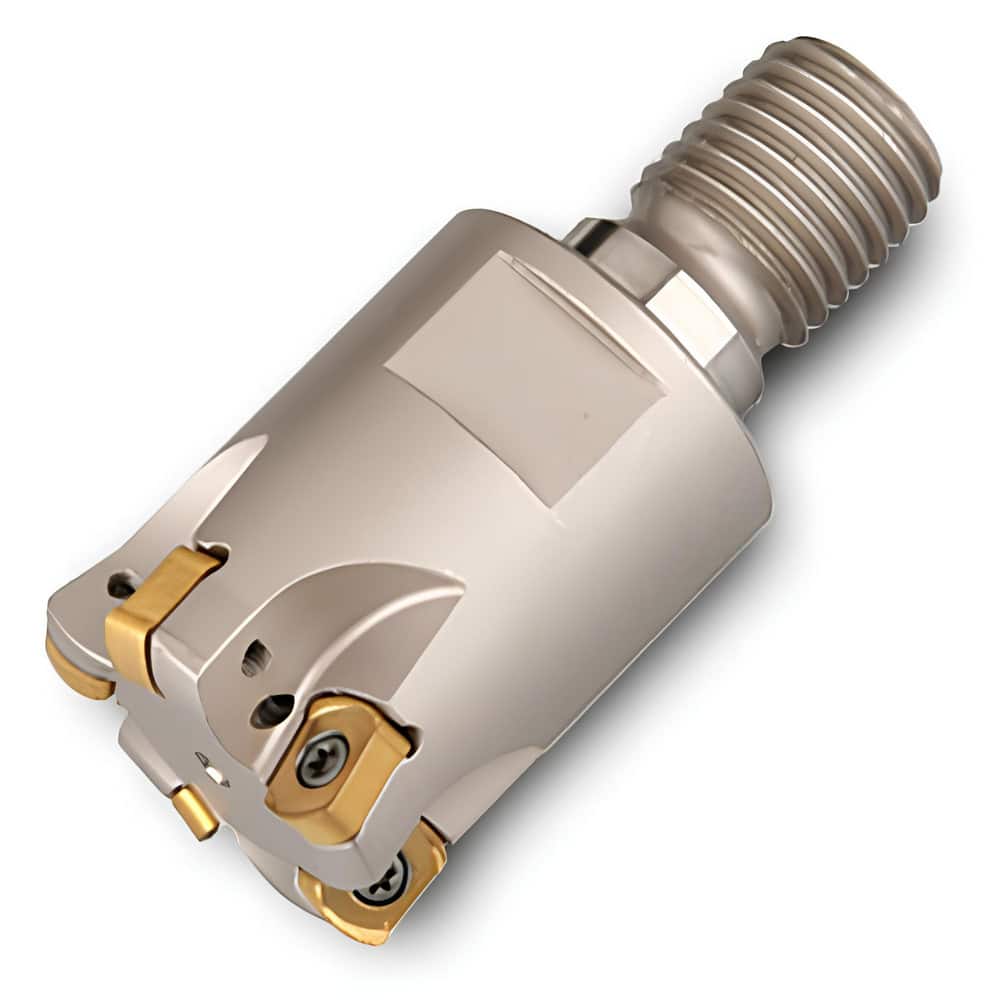

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 1.13″ Modular Shank Uses 4 UNLU Inserts, 0.06″ Max Depth, 1.57″ OAL, Through Coolant
Item #: 97715080
Brand: Ingersoll Cutting Tools
Model #: 2906936
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.8410 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Toolholder Style | 1TG1G |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 1.1300 |
| Shank Diameter (mm) | 1.13 |
| Maximum Ramping Angle | 2.10 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0904 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 1.5700 |
| Overall Length (mm) | 1.57 |
| Series | 1TG1G |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.5700 |
| Functional Length (Decimal Inch) | 1.5700 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
