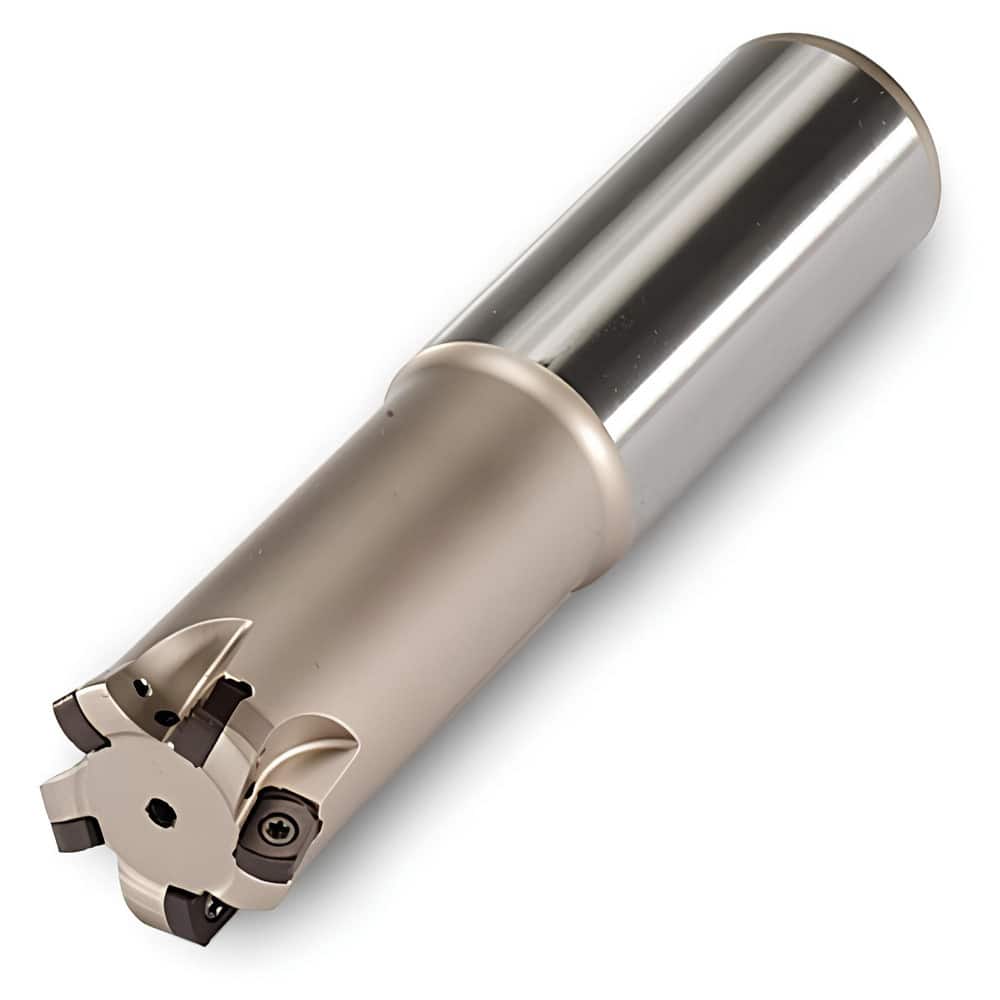

Indexable High-Feed End Mill: 25 mm Cut Dia, 0.98 mm Cylindrical Shank Uses 3 UNLU Inserts, 1 mm Max Depth, 220 mm OAL, Through Coolant
Item #: 97800270
Brand: Ingersoll Cutting Tools
Model #: 3112157
Product Specifications
| Minimum Cutting Diameter (mm) | 17.30 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Toolholder Style | 1TG1F |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 0.98 |
| Maximum Ramping Angle | 0.80 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 220.0000 |
| Overall Length (Inch) | 220 |
| Overall Length (mm) | 220.00 |
| Series | 1TG1F |
| Flute Type | Straight |
| Head Length (mm) | 50.00 |
| Functional Length (mm) | 50.00 |
| Projection (mm) | 60.00 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
