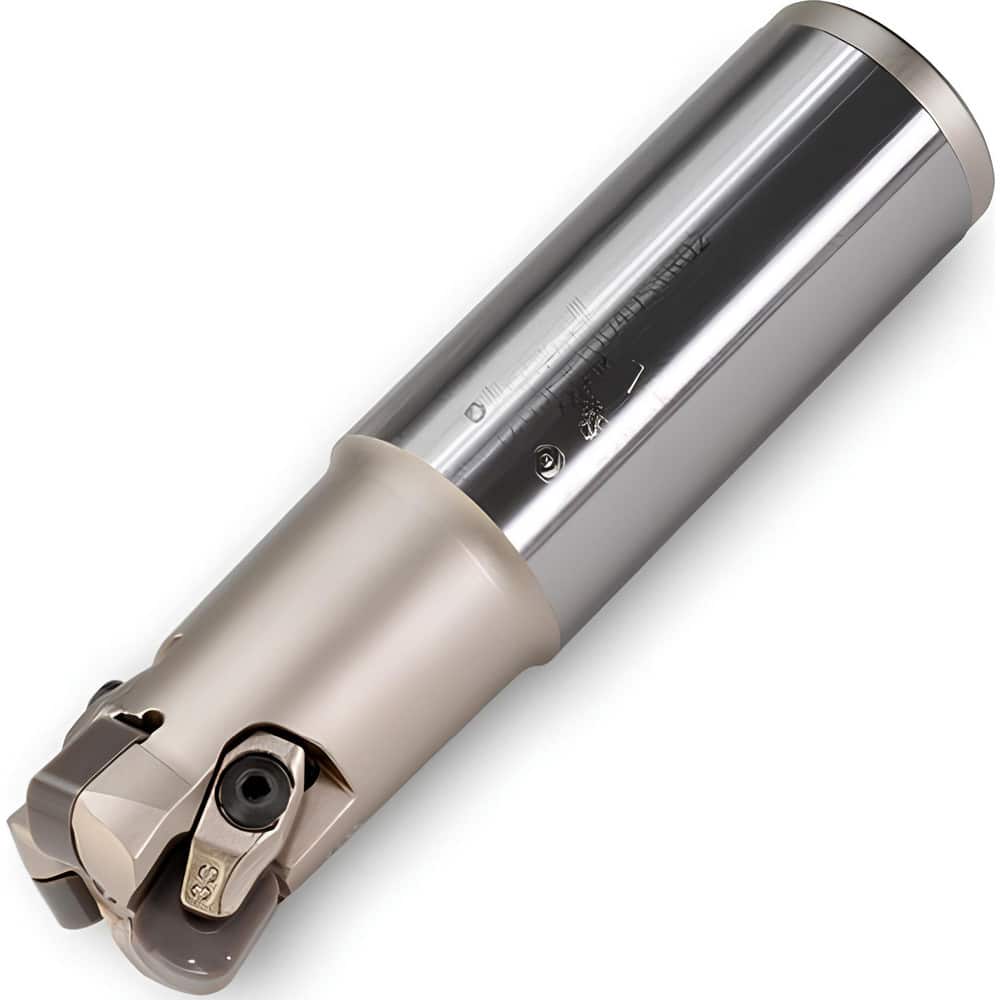

Indexable High-Feed End Mill: 1″ Cut Dia, 1″ Cylindrical Shank Uses 2 LNXF Inserts, 0.06″ Max Depth, 4″ OAL, Through Coolant
Item #: 97802656
Brand: Ingersoll Cutting Tools
Model #: 6342956
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.6000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Toolholder Style | 1ZG3F |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 0.70 |
| Compatible Insert Style | LNXF |
| Compatible Insert Size Code | 0905 |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 4.00 |
| Series | 1ZG3F |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 1.6000 |
| Functional Length (Decimal Inch) | 1.6000 |
| Projection (Decimal Inch - 4 Decimals) | 1.7600 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
