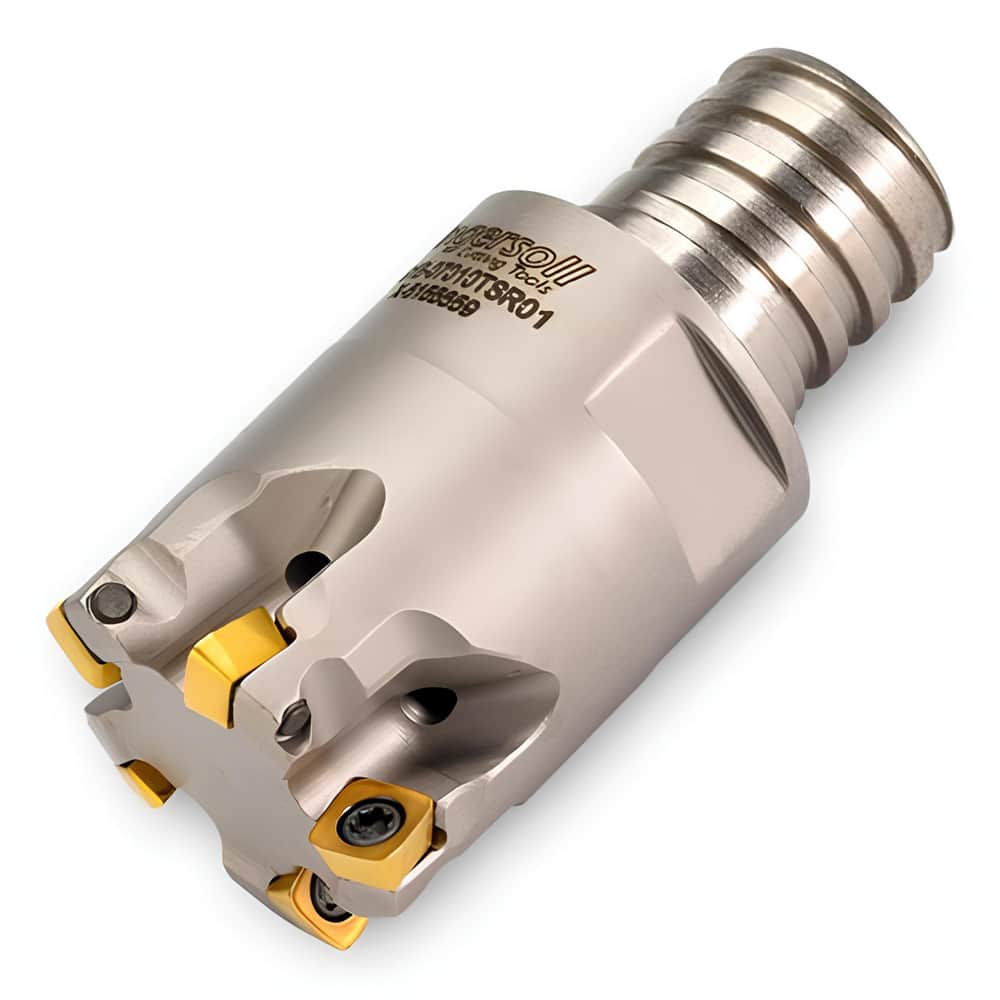

Indexable High-Feed End Mill: 3/4″ Cut Dia, 0.73″ Modular Shank Uses 5 SDXS Inserts, 0.023″ Max Depth, 1.02″ OAL, Through Coolant
Item #: 97808273
Brand: Ingersoll Cutting Tools
Model #: 2924700
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5400 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0230 |
| Toolholder Style | 15G1B |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 0.7300 |
| Shank Diameter (mm) | 0.73 |
| Maximum Ramping Angle | 2.20 |
| Compatible Insert Style | SDXS |
| Compatible Insert Size Code | 0402 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 1.0200 |
| Overall Length (mm) | 1.02 |
| Series | 15G1B |
| Flute Type | Straight |
| Modular Connection Size | T12 |
| Head Length (Decimal Inch) | 1.0200 |
| Functional Length (Decimal Inch) | 1.0200 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
