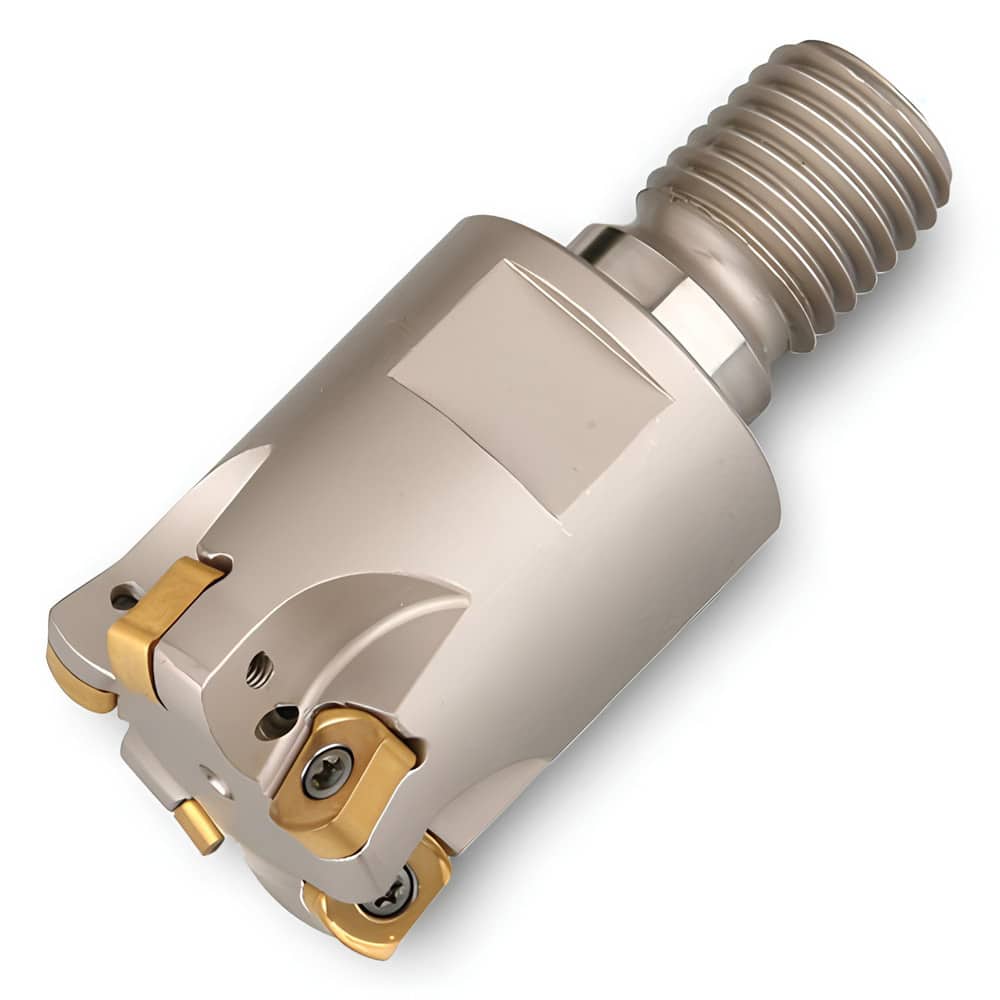

Indexable High-Feed End Mill: 25 mm Cut Dia, Modular Shank Uses 4 UNLU Inserts, 1 mm Max Depth, 35 mm OAL, Through Coolant
Item #: 97809164
Brand: Ingersoll Cutting Tools
Model #: 3107647
Product Specifications
| Minimum Cutting Diameter (mm) | 17.30 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Toolholder Style | 1TG1F |
| Shank Type | Modular |
| Maximum Ramping Angle | 1.30 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 35.0000 |
| Overall Length (Inch) | 35 |
| Overall Length (mm) | 35.00 |
| Series | 1TG1F |
| Flute Type | Straight |
| Modular Connection Size | M12 |
| Head Length (mm) | 35.00 |
| Functional Length (mm) | 35.00 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
