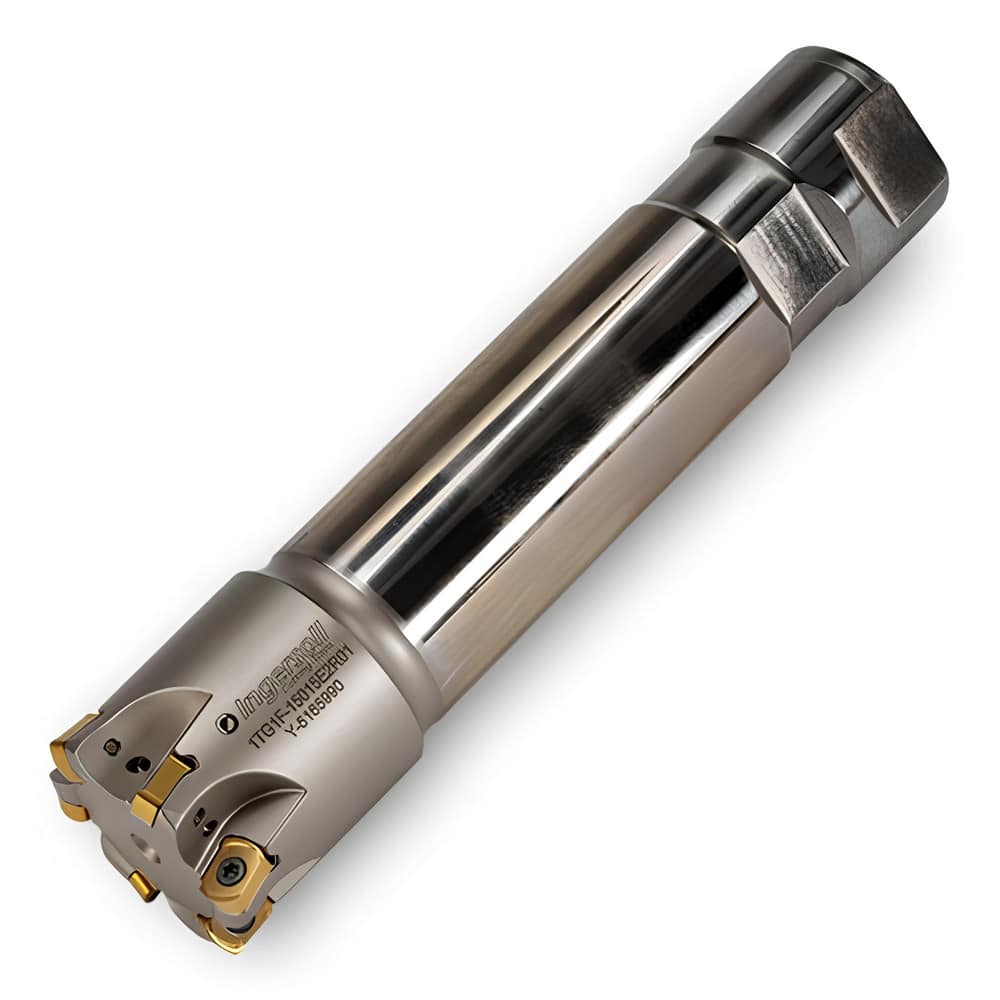

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 1-1/4″ Weldon Flat Shank Uses 5 UNLU Inserts, 0.043″ Max Depth, 8″ OAL, Through Coolant
Item #: 97809800
Brand: Ingersoll Cutting Tools
Model #: 3029349
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.9460 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Toolholder Style | 1TG1F |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 1.25 |
| Maximum Ramping Angle | 0.65 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Overall Length (mm) | 8.00 |
| Series | 1TG1F |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 4.7500 |
| Functional Length (Decimal Inch) | 4.7500 |
| Projection (Decimal Inch - 4 Decimals) | 4.9200 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
