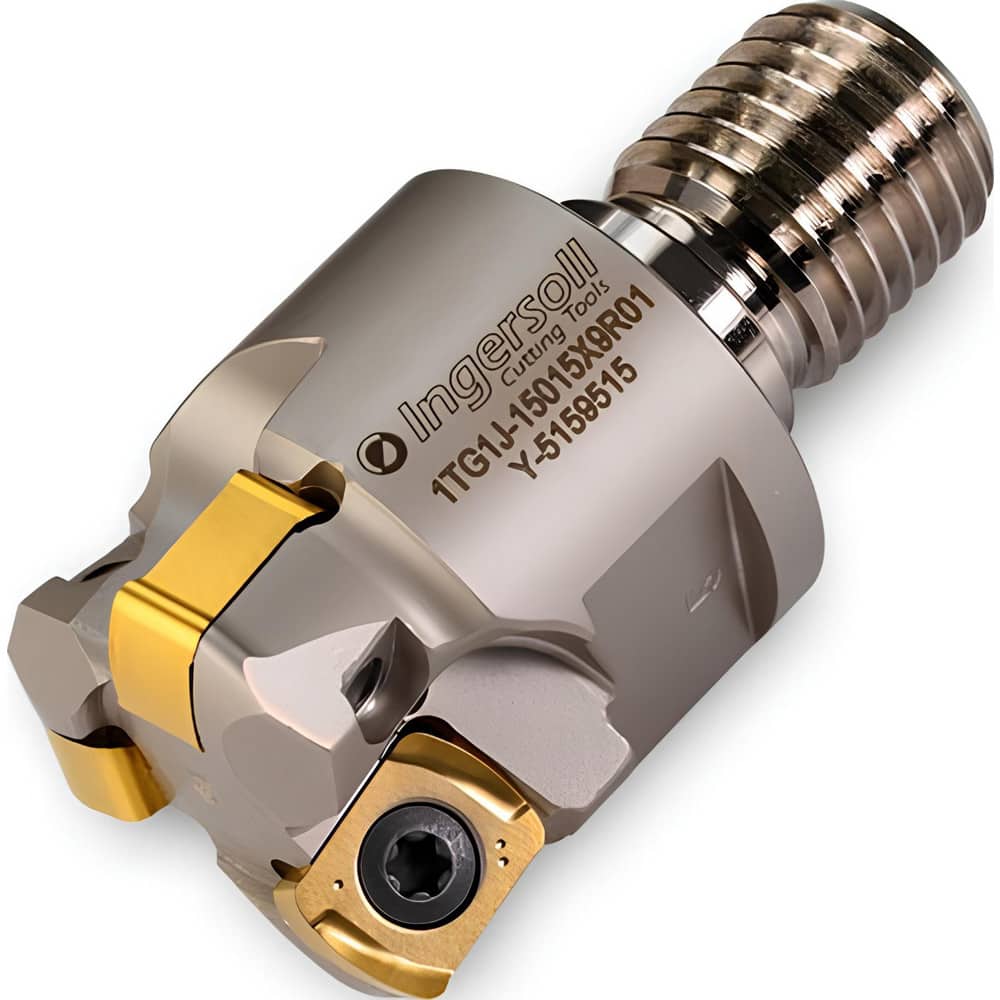

Indexable High-Feed End Mill: 35 mm Cut Dia, 1.14 mm Modular Shank Uses 3 UNLU Inserts, 2 mm Max Depth, 43 mm OAL, Through Coolant
Item #: 97911069
Brand: Ingersoll Cutting Tools
Model #: 6307355
Product Specifications
| Minimum Cutting Diameter (mm) | 19.50 |
| Maximum Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Toolholder Style | 1TG1J |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 1.1417 |
| Shank Diameter (mm) | 1.14 |
| Maximum Ramping Angle | 0.50 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 1105 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 43.0000 |
| Overall Length (Inch) | 43 |
| Overall Length (mm) | 43.00 |
| Series | 1TG1J |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Head Length (mm) | 43.00 |
| Functional Length (mm) | 43.00 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
