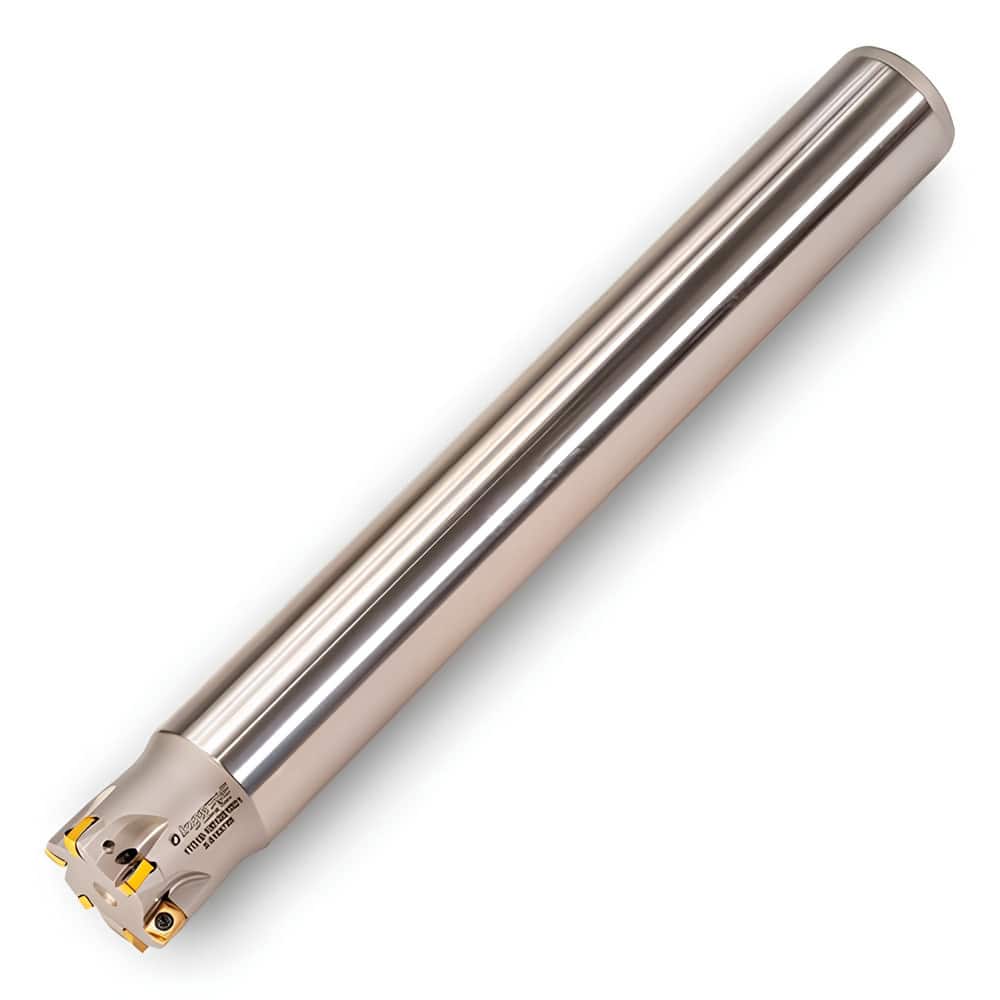

Indexable High-Feed End Mill: 16 mm Cut Dia, 0.62 mm Cylindrical Shank Uses 4 UNLU Inserts, 0.5 mm Max Depth, 150 mm OAL, Through Coolant
Item #: 97919096
Brand: Ingersoll Cutting Tools
Model #: 6185242
Product Specifications
| Minimum Cutting Diameter (mm) | 11.60 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 0.50 |
| Toolholder Style | 1TG1B |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 0.62 |
| Maximum Ramping Angle | 0.50 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0402 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (Inch) | 150 |
| Overall Length (mm) | 150.00 |
| Series | 1TG1B |
| Flute Type | Straight |
| Projection (mm) | 25.00 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
