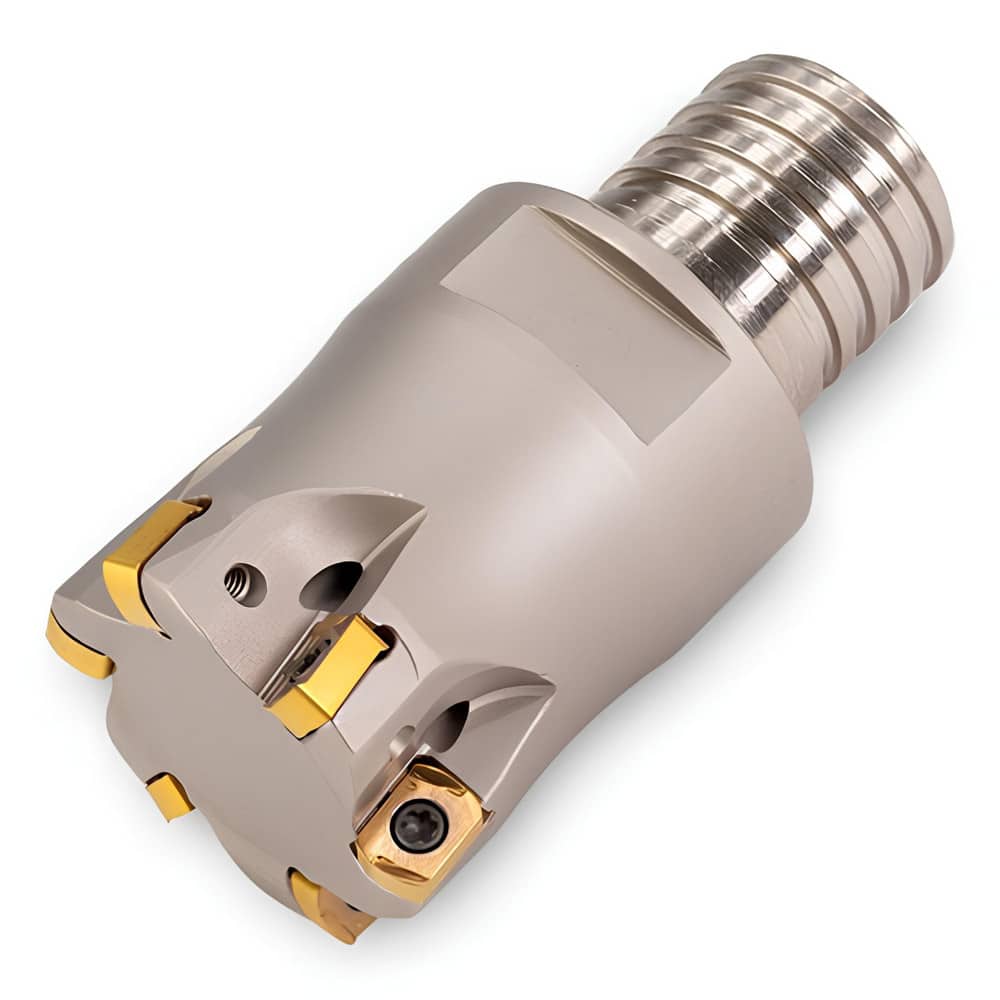

Indexable High-Feed End Mill: 0.438″ Cut Dia, 0.37″ Modular Shank Uses 2 UNLU Inserts, 0.02″ Max Depth, 0.63″ OAL, Through Coolant
Item #: 97926745
Brand: Ingersoll Cutting Tools
Model #: 2924810
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.2660 |
| Maximum Cutting Diameter (Decimal Inch) | 0.4380 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Toolholder Style | 1TG1B |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 0.3700 |
| Shank Diameter (mm) | 0.37 |
| Maximum Ramping Angle | 0.88 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0402 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 0.6300 |
| Overall Length (mm) | 0.63 |
| Series | 1TG1B |
| Flute Type | Straight |
| Modular Connection Size | T06 |
| Head Length (Decimal Inch) | 0.6300 |
| Functional Length (Decimal Inch) | 0.6300 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
