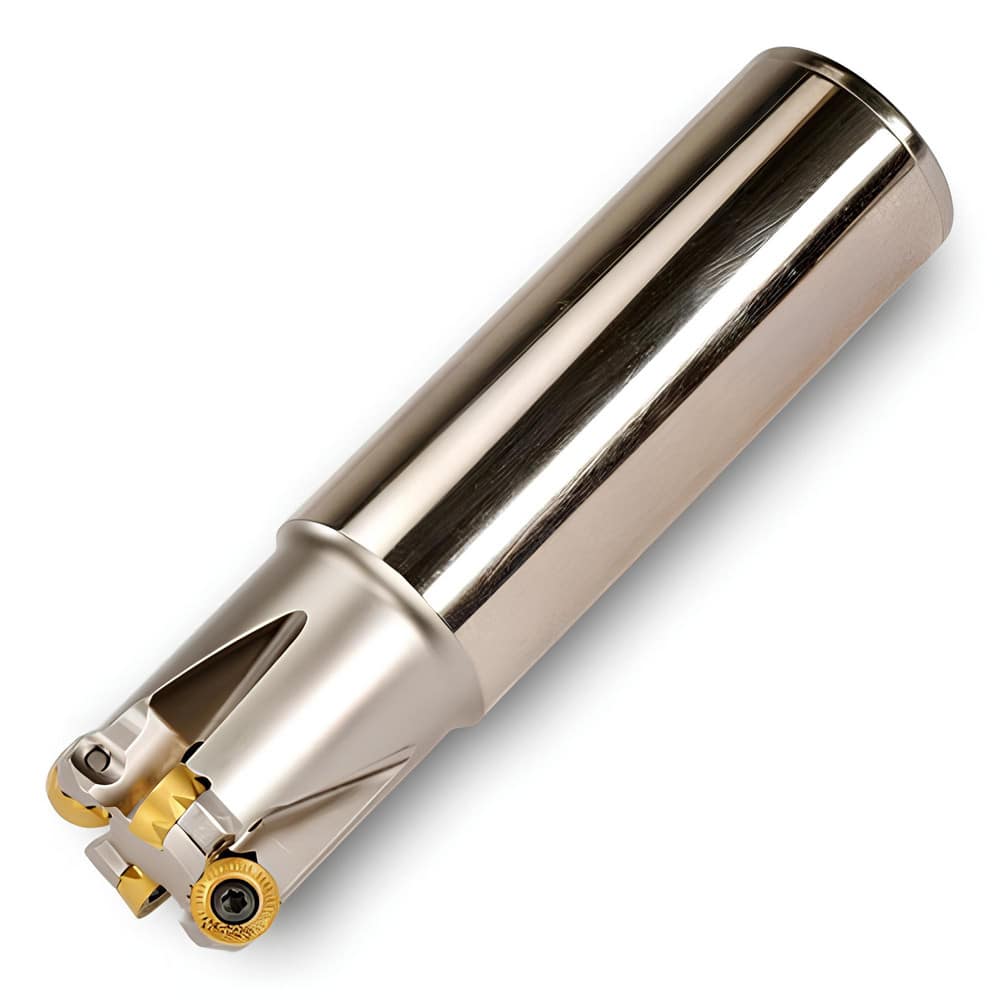

Indexable Copy End Mills; Maximum Depth Of Cut: 0.2500 in; Shank Type: Weldon; Toolholder Style: 15B4H; Shank Diameter (Inch): 1.0000; Shank Diameter (mm): 1.0000; Maximum Ramping Angle: 9.5 ™; Compatible Insert Style: RJLT; Compatible Insert Size Code:
Item #: 97941553
Brand: Ingersoll Cutting Tools
Model #: 2915281
Product Specifications
| Maximum Depth Of Cut | 0.2500 in |
| Shank Type | Weldon |
| Toolholder Style | 15B4H |
| Shank Diameter (Inch) | 1.0000 |
| Shank Diameter (mm) | 1.0000 |
| Maximum Ramping Angle | 9.5 ? |
| Compatible Insert Style | RJLT |
| Compatible Insert Size Code | 1304 |
| Number Of Cutter Inserts | 3 |
| Series | 15B4H |
| Overall Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.00 |
| Overall Length (Inch) | 5.00 |
| Flute Type | Straight |
| Tool Application | Facing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 0.7500 in |
| Head Length (Decimal Inch) | 2.5800 in |
| Head Length (Inch) | 2.5800 in |
| Shank Length (Decimal Inch) | 2.2500 in |
| Shank Length (mm) | 2.2500 in |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 in |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 in |
