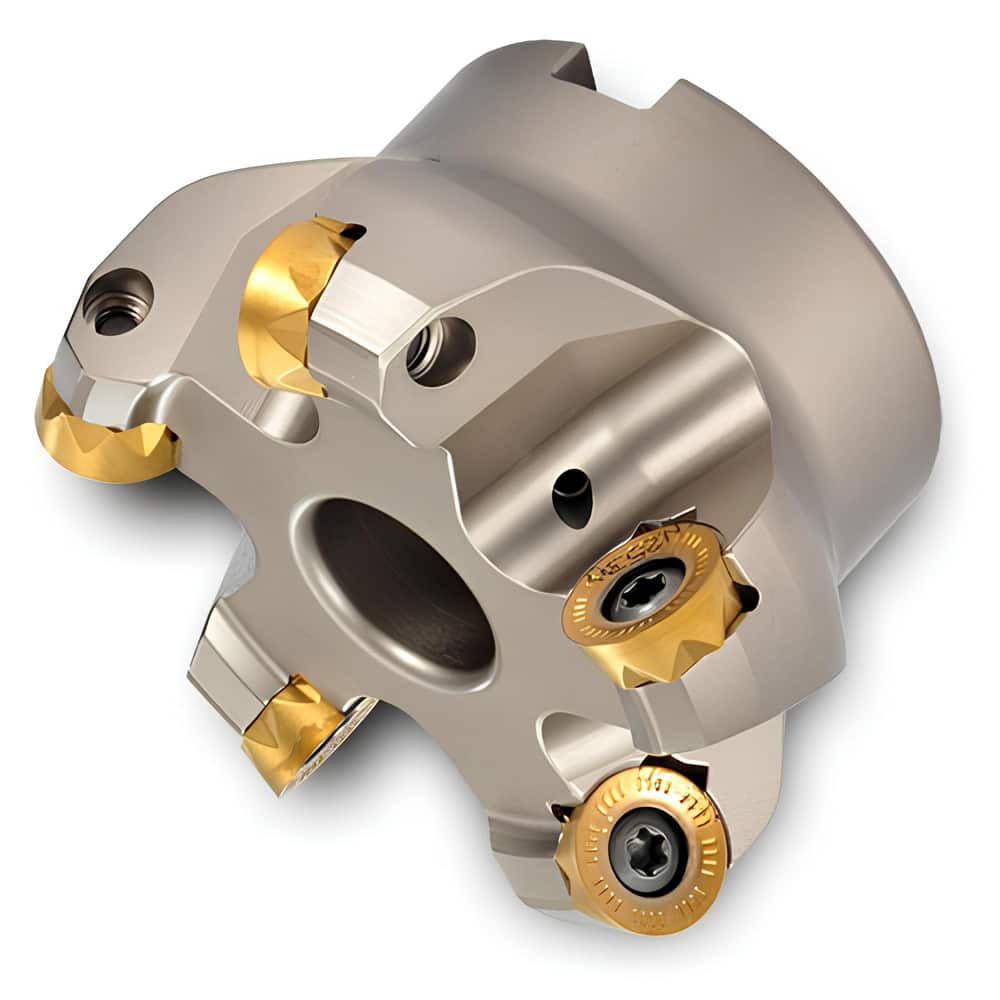

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.3937 in; Compatible Insert Size Code: RJL.2007; Arbor Hole Diameter (mm): 0.75; Maximum Ramping Angle: 2 ™; Overall Height (mm): 2.0000 in; Series: 1A7M; Number of Cutter Inserts: 4; Cutter Style: 1A7M;
Item #: 98105620
Brand: Ingersoll Cutting Tools
Model #: 2906974
Product Specifications
| Maximum Depth Of Cut | 0.3937 in |
| Compatible Insert Size Code | RJL.2007 |
| Arbor Hole Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 2 ? |
| Overall Height (mm) | 2.0000 in |
| Series | 1A7M |
| Number of Cutter Inserts | 4 |
| Cutter Style | 1A7M |
| Keyway Width | 7.9200 |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 7.9200 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.7230 in |
