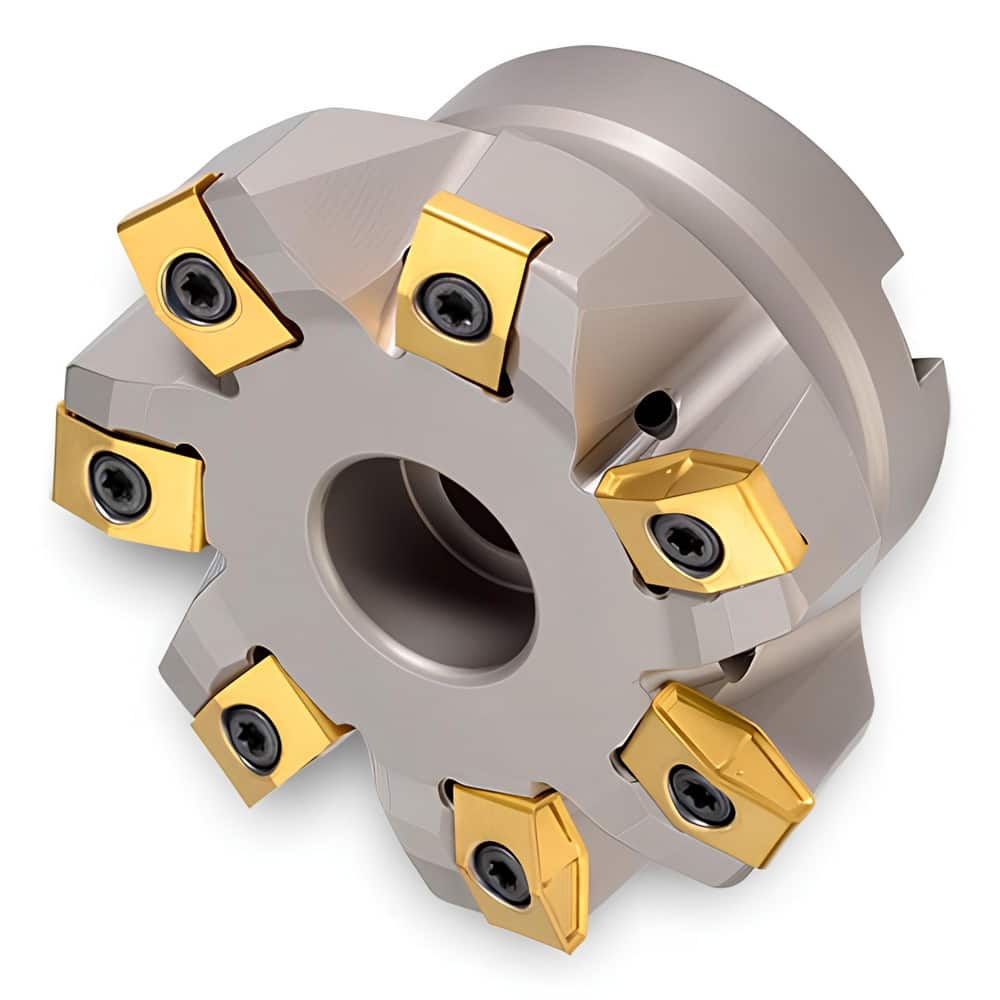

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 2.3990 in; Maximum Cutting Diameter: 3.0000 in; Maximum Depth Of Cut: 0.0580 in; Arbor Hole Diameter (mm): 1.25; Compatible Insert Size Code: 324; Maximum Ramping Angle: 1.6 ™; Series: 8G5A; Cutte
Item #: 98106545
Brand: Ingersoll Cutting Tools
Model #: 2924156
Product Specifications
| Minimum Cutting Diameter | 2.3990 in |
| Maximum Cutting Diameter | 3.0000 in |
| Maximum Depth Of Cut | 0.0580 in |
| Arbor Hole Diameter (mm) | 1.25 |
| Compatible Insert Size Code | 324 |
| Maximum Ramping Angle | 1.6 ? |
| Series | 8G5A |
| Cutter Style | 8G5A |
| Number of Cutter Inserts | 7 |
| Through Coolant | Normal Pressure |
| Keyway Width | 12.7000 |
| Overall Height | 1.7500 in |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
