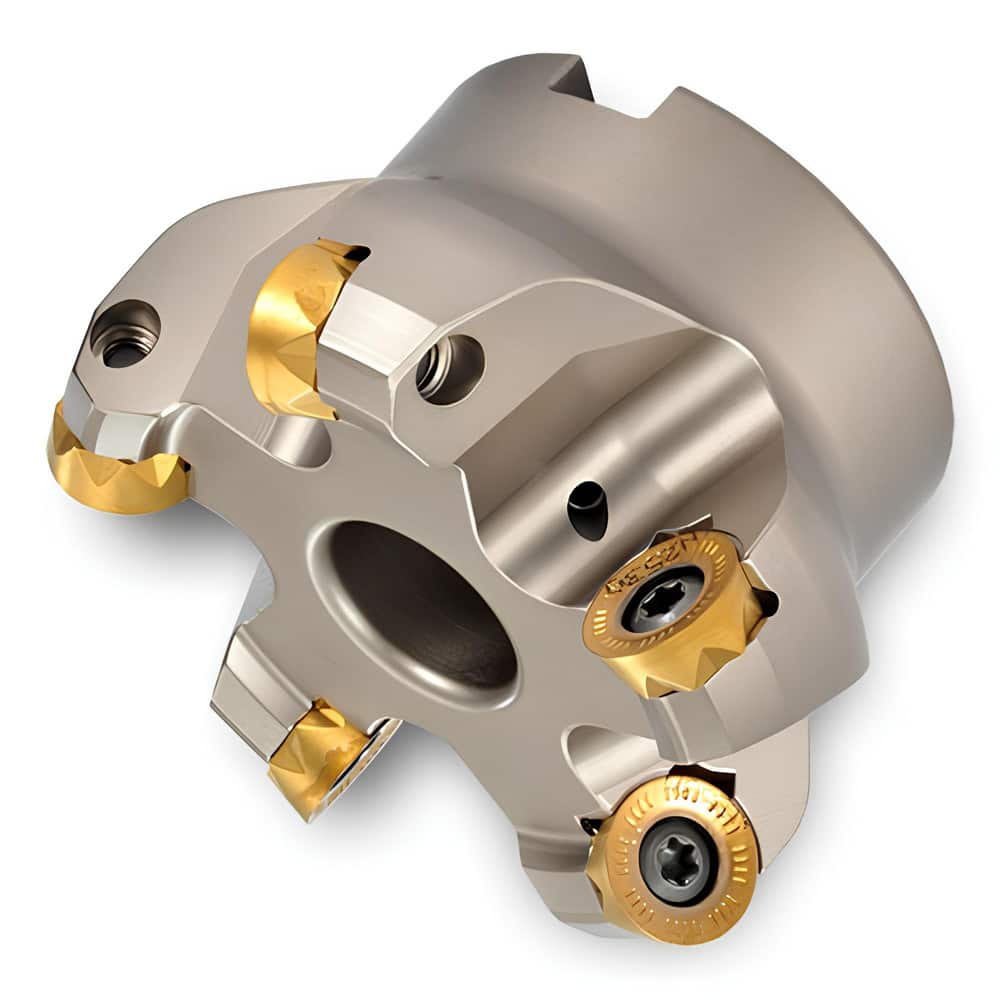

Indexable Copy Face Mills; Maximum Depth Of Cut: 6.00 mm; Compatible Insert Size Code: RJ..1204; Arbor Hole Diameter (mm): 22.00; Maximum Ramping Angle: 6 ™; Overall Height (mm): 50.00 mm; Series: 1A7H; Number of Cutter Inserts: 4; Cutter Style: 1A7H; Ke
Item #: 98111693
Brand: Ingersoll Cutting Tools
Model #: 3108164
Product Specifications
| Maximum Depth Of Cut | 6.00 mm |
| Compatible Insert Size Code | RJ..1204 |
| Arbor Hole Diameter (mm) | 22.00 |
| Maximum Ramping Angle | 6 ? |
| Overall Height (mm) | 50.00 mm |
| Series | 1A7H |
| Number of Cutter Inserts | 4 |
| Cutter Style | 1A7H |
| Keyway Width | 10.4000 |
| Tool Application | Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 10.4000 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 50.00 mm |
| Minimum Cutting Diameter (Decimal Inch) | 38.00 mm |
