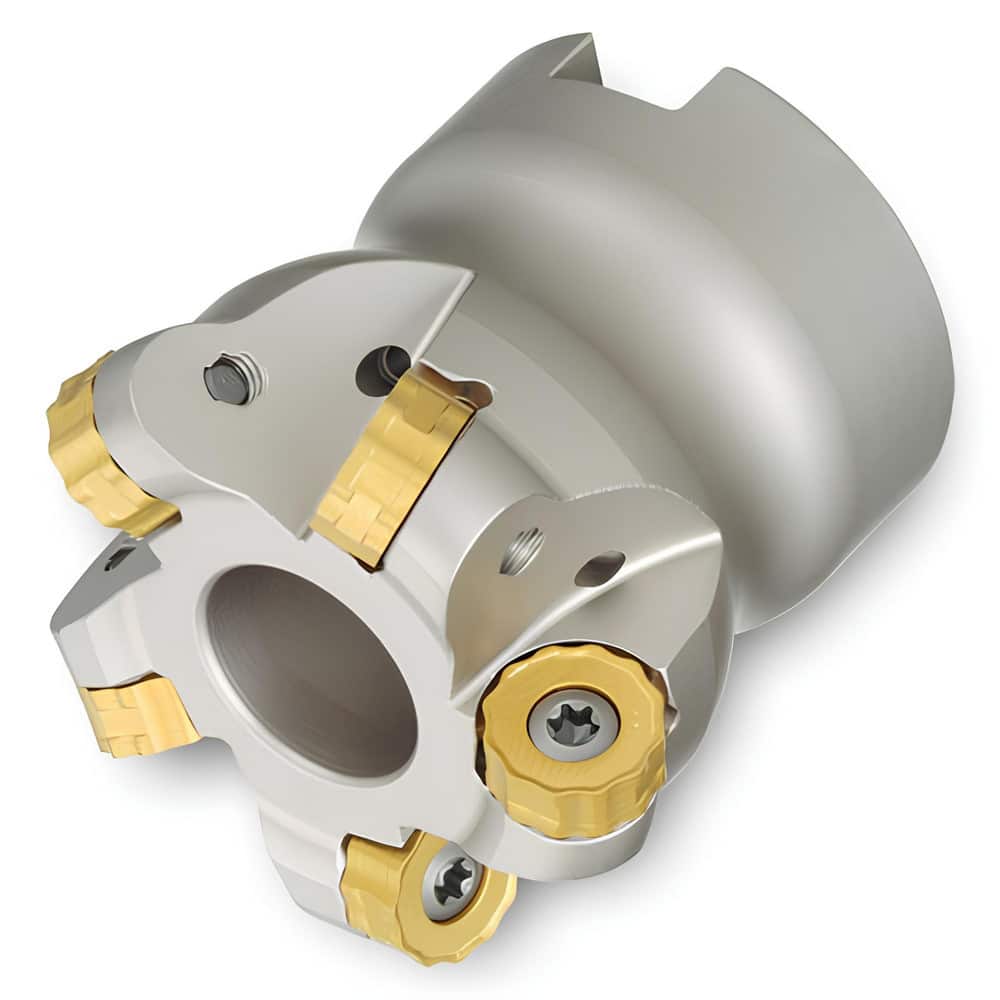

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.2362 in; Compatible Insert Size Code: RNLU1205; Arbor Hole Diameter (mm): 0.75; Maximum Ramping Angle: 0.5 ™; Overall Height (mm): 1.7500 in; Series: DE6H; Number of Cutter Inserts: 5; Cutter Style: DE6H
Item #: 98114135
Brand: Ingersoll Cutting Tools
Model #: 3031507
Product Specifications
| Maximum Depth Of Cut | 0.2362 in |
| Compatible Insert Size Code | RNLU1205 |
| Arbor Hole Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 0.5 ? |
| Overall Height (mm) | 1.7500 in |
| Series | DE6H |
| Number of Cutter Inserts | 5 |
| Cutter Style | DE6H |
| Keyway Width | 7.9200 |
| Tool Application | Facing; Pocketing; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 7.9200 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.5280 in |
