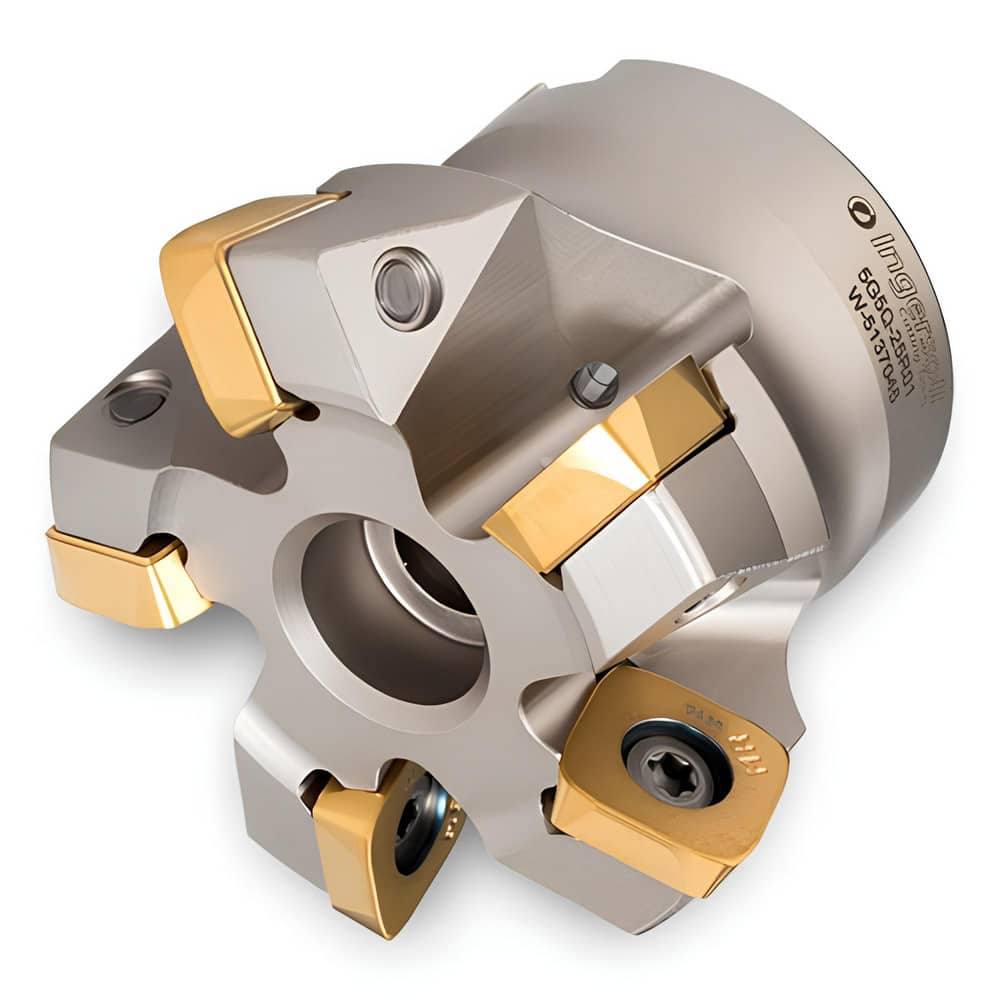

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 3.1440 in; Maximum Cutting Diameter: 4.0000 in; Maximum Depth Of Cut: 0.1060 in; Arbor Hole Diameter (mm): 1.50; Compatible Insert Size Code: 1605; Maximum Ramping Angle: 1.6 ™; Series: 5G6Q; Cutt
Item #: 98117567
Brand: Ingersoll Cutting Tools
Model #: 2922136
Product Specifications
| Minimum Cutting Diameter | 3.1440 in |
| Maximum Cutting Diameter | 4.0000 in |
| Maximum Depth Of Cut | 0.1060 in |
| Arbor Hole Diameter (mm) | 1.50 |
| Compatible Insert Size Code | 1605 |
| Maximum Ramping Angle | 1.6 ? |
| Series | 5G6Q |
| Cutter Style | 5G6Q |
| Number of Cutter Inserts | 6 |
| Through Coolant | Normal Pressure |
| Keyway Width | 16.0000 |
| Overall Height | 2.5000 in |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
